ENGINE
4-17TX525 Service Manual Rev. 000

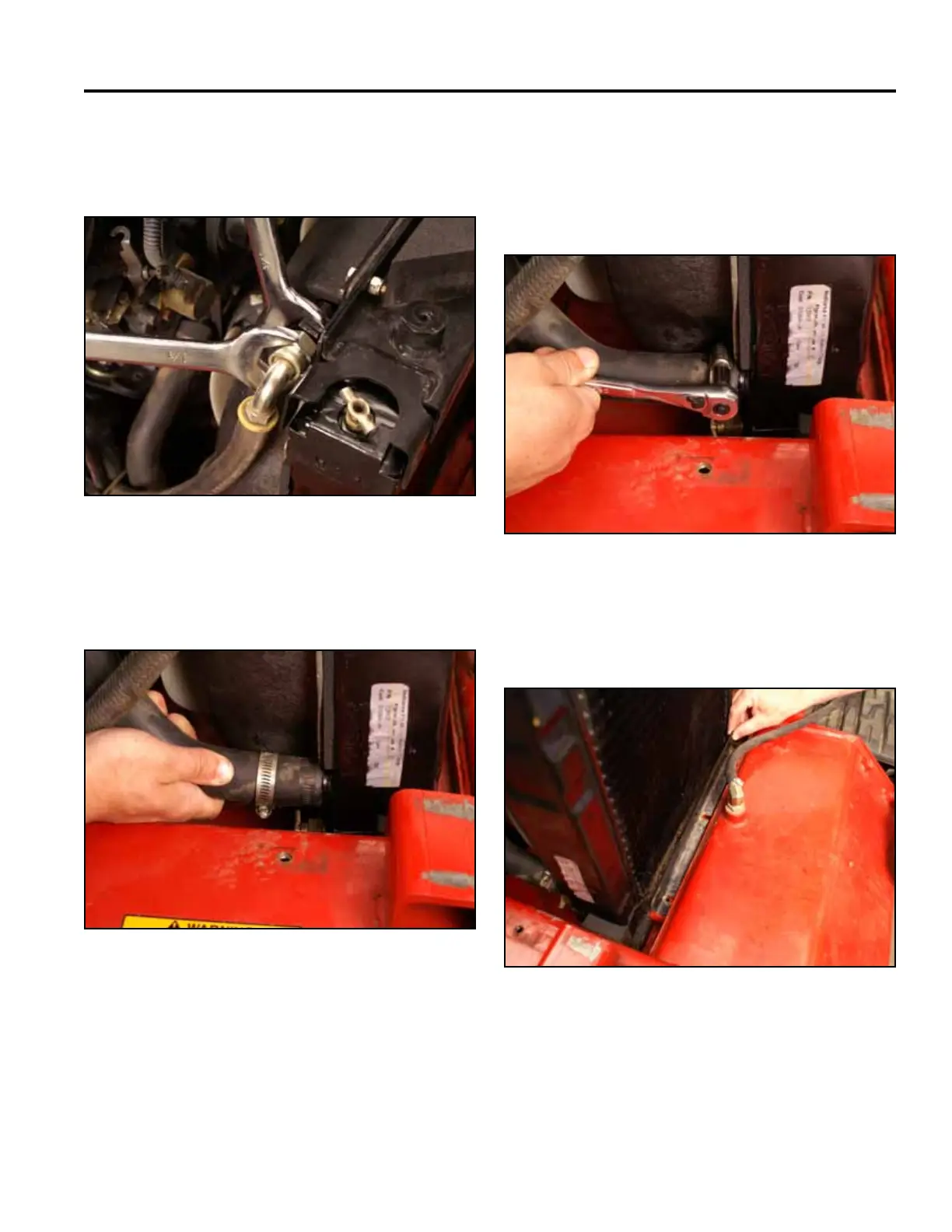

7. Using1-1/16”and1-1/8”wrenches,installthehy-
draulicoutletlinetotheoilcooleroutlettting(Fig.
0138).
9. Slidethehoseclampintopositionwiththetightening
screwheadfacingoutwardasshown.Thiswillallow
accesstothetighteningscrewthroughthegrillas-
semblywhenitisinposition.Tightenthehoseclamp
(Fig.0140).
Fig 0138 PICT-5126
Fig 0140 PICT-5128
10. Positiontheradiatormountintotheframe(Fig.
0141).
8. Slidetheradiatorinlethose(bottomhose)ontothe
radiatorange(Fig.0139).
Fig 0141 PICT-5129
Fig 0139 PICT-5127
