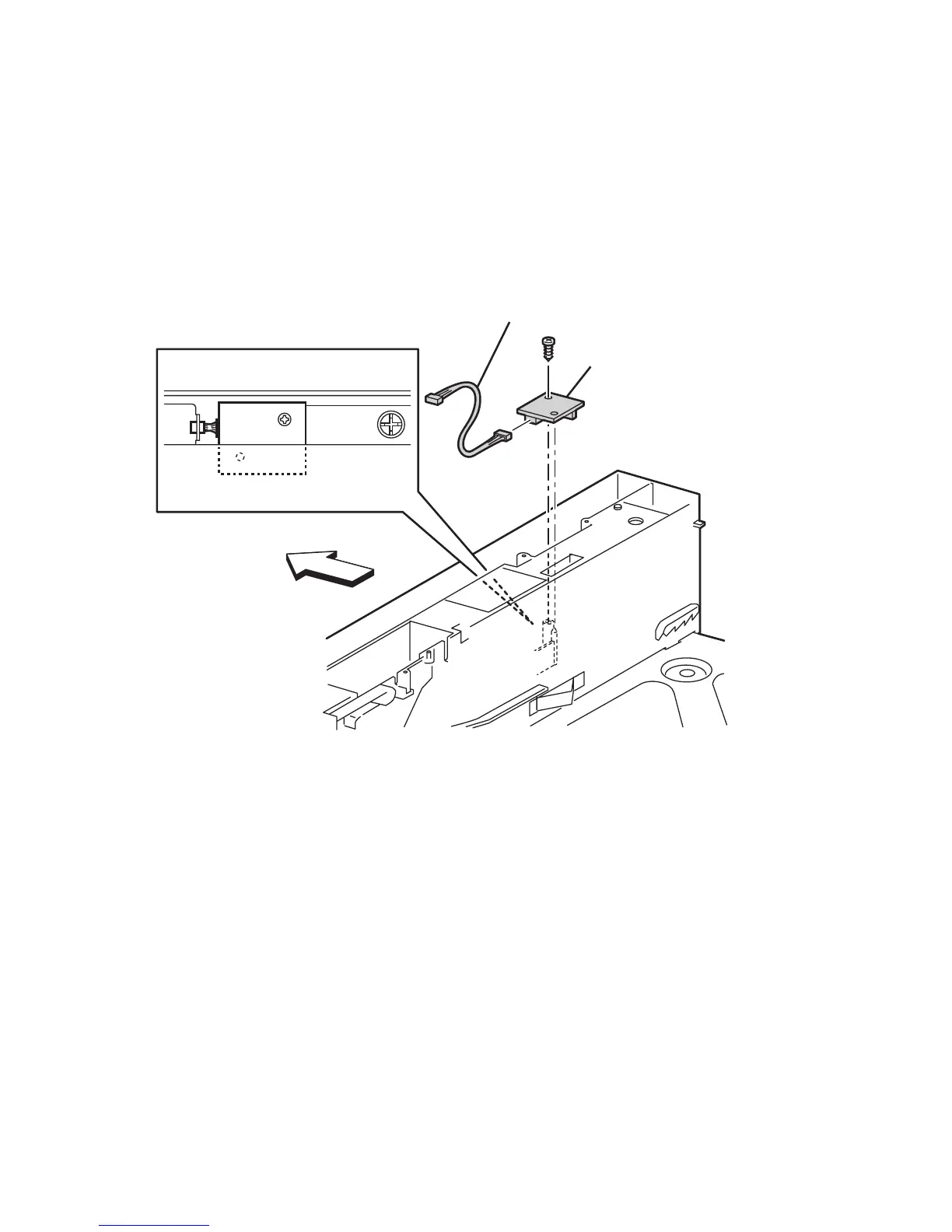

Temperature/Humidity Harness (PL3.2.1) and Sensor
(PL3.2.2)
1. Remove the Top Main Cover(page 8-9).
2. Remove the Left Side Cover (page 8-11).
3. Disconnect P/J2361 (gray) from the printer.
4. Remove the screw securing the Temperature/Humidity Sensor (item #1) and
remove the sensor.
Replacement Notes
Note
Seat the sensor onto the Guide Pins with needle nose pliers then re-insert the
screw. Reconnect connector P/J2361.
6250-142
P/J2361
1
LEFT
