8-116 Phaser 6250 Color Laser Printer Service Manual

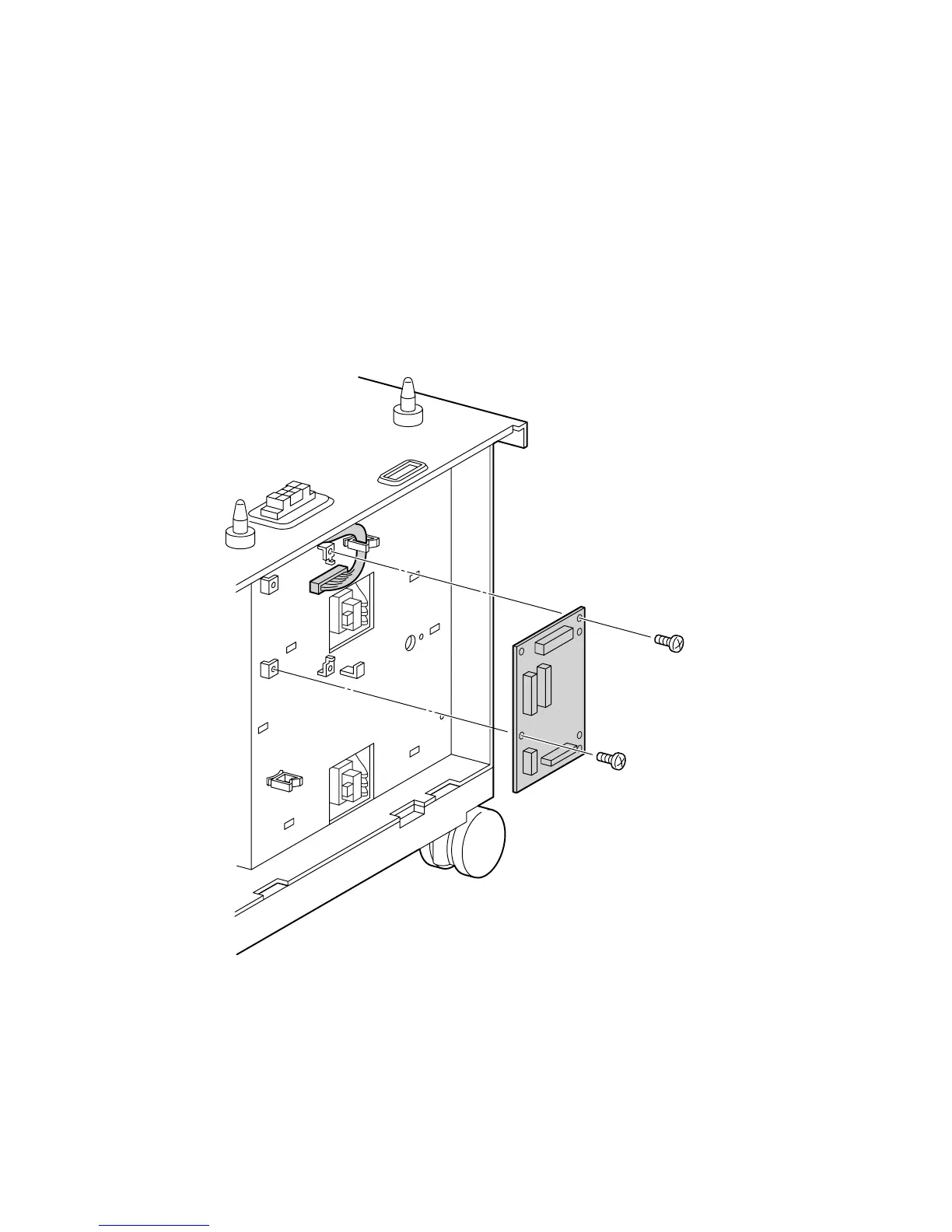

Circuit Board, HCF (PL14.5.1)
1. Remove both Paper Trays from the HCF.
2. Remove the Front Covers (page 8-111).
3. Remove the Cover Right (page 8-112).
4. Disconnect P/J81 from the Harness Feeder Plug Assembly.
5. Disconnect P/J82 from the Harness Assembly Tray 3.
6. Disconnect P/J83 from the Harness Assembly Tray 4.
7. Disconnect P/J84 from the Drive Assembly.
8. Remove the 3 screws securing the Power Feeder Circuit board to the HCF frame
and remove the board.
Replacement Notes
Note
When replacing the Power Feeder Circuit Board, align the hole on the board
and the two tabs on the HCF Frame.
6250-284
To Next Page
