8-130 Phaser 6250 Color Laser Printer Service Manual
Optional 500-sheet Feeder Disassembly
Cover Front (PL15.2.4)

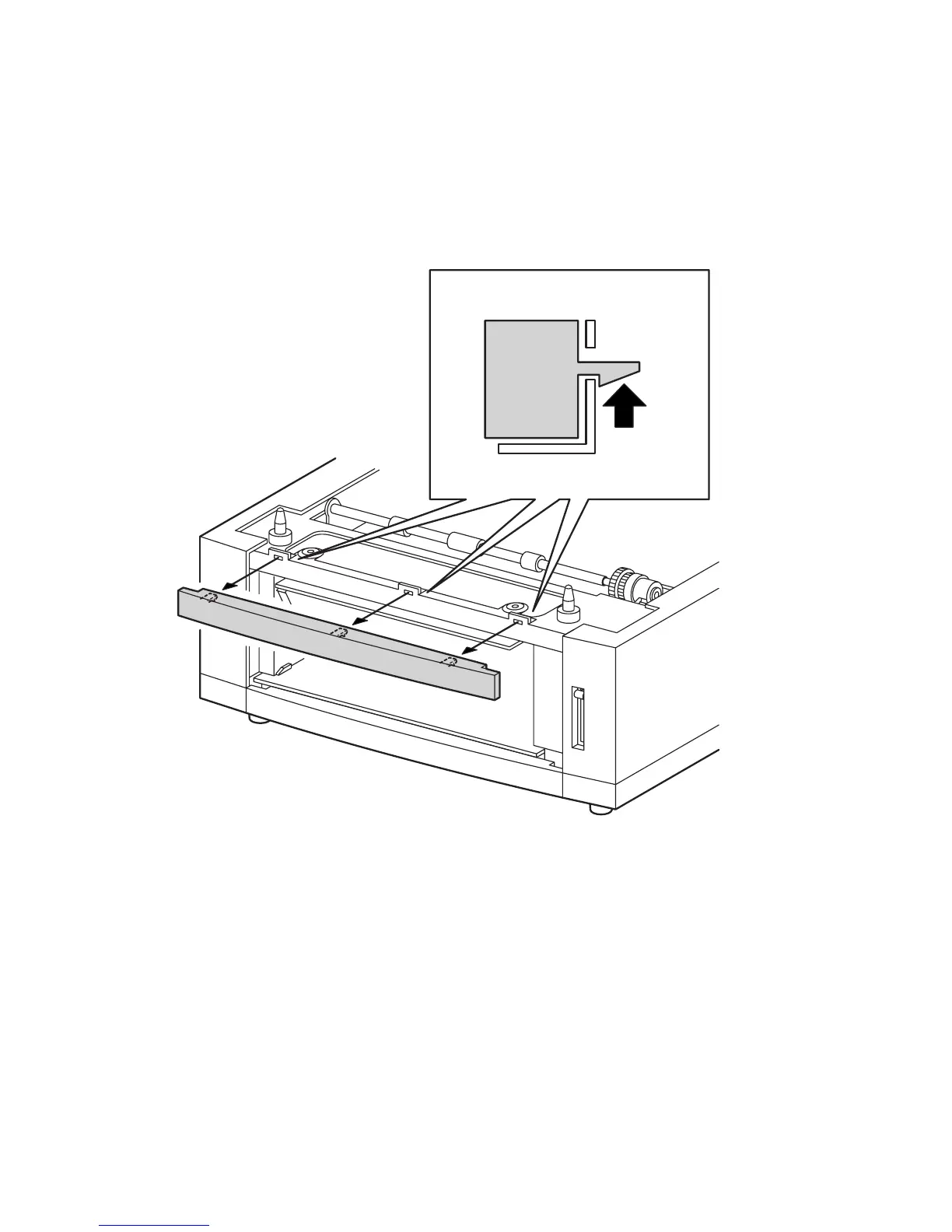

1. Remove Paper Tray 3.
2. Carefully pry up on the 3 tabs securing the Cover Front to the frame and remove
the Cover Front.
Reassembly
Note
When replacing the Cover Front note the orientation. Align the edge with the
slit in the Feeder Frame.
6250-408
