Xerox PHASER 6250 Service Manual

Service Parts Disassembly 8-141
Left Tray Guide (PL15.3.3)
1. Remove the Paper Tray from the STF.
2. Remove the Front Covers (page 8-130).
3. Remove the Left Cover (page 8-131).
4. Remove the Turn Chute Assembly (page 8-132).

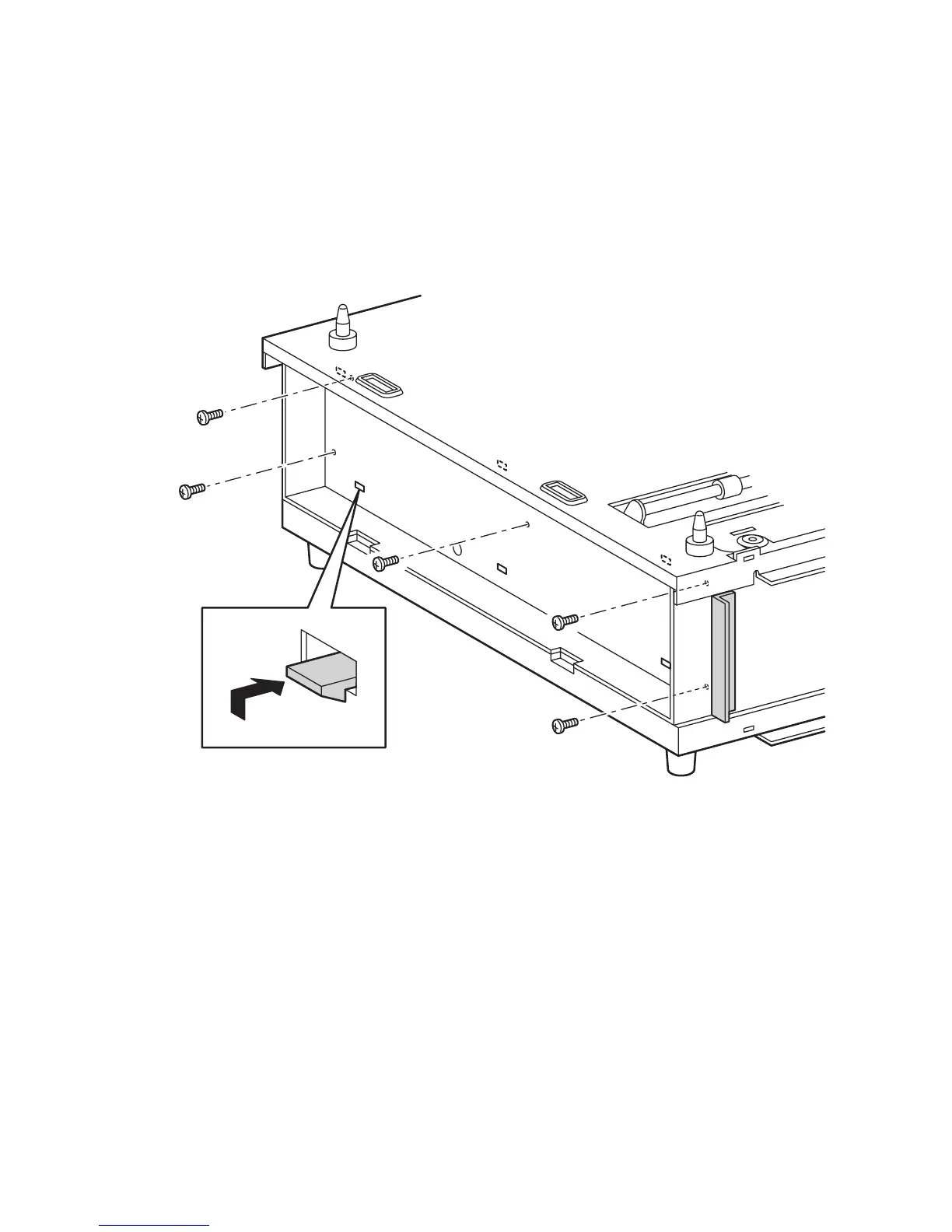

5. Remove the 5 screws securing the Left Tray Guide Assembly to the STF frame.
6. Release the 6 tabs securing the Left Tray Guide Assembly to the STF frame.
6250-419
