Service Parts Disassembly 8-77
Toner Cartridge Holder Assemblies
Toner Cartridge Holder Unit Assembly (PL 10.1)
Note
Use only a Type II Toner Vacuum to remove toner deposits before removing
the Toner Cartridge Holder Unit (item #1). When removing toner deposits,
be careful not to get toner into the sensors.
1. Remove the Imaging Unit and protect it from exposure to light.
2. Remove the Top Main Cover (page 8-9).
3. Remove the Right and Left Side Covers (page 8-11).
4. Remove the Rear Cover (page 8-12).
Caution
Reinstall the toner cartridges to seal the toner system and prevent spillage.

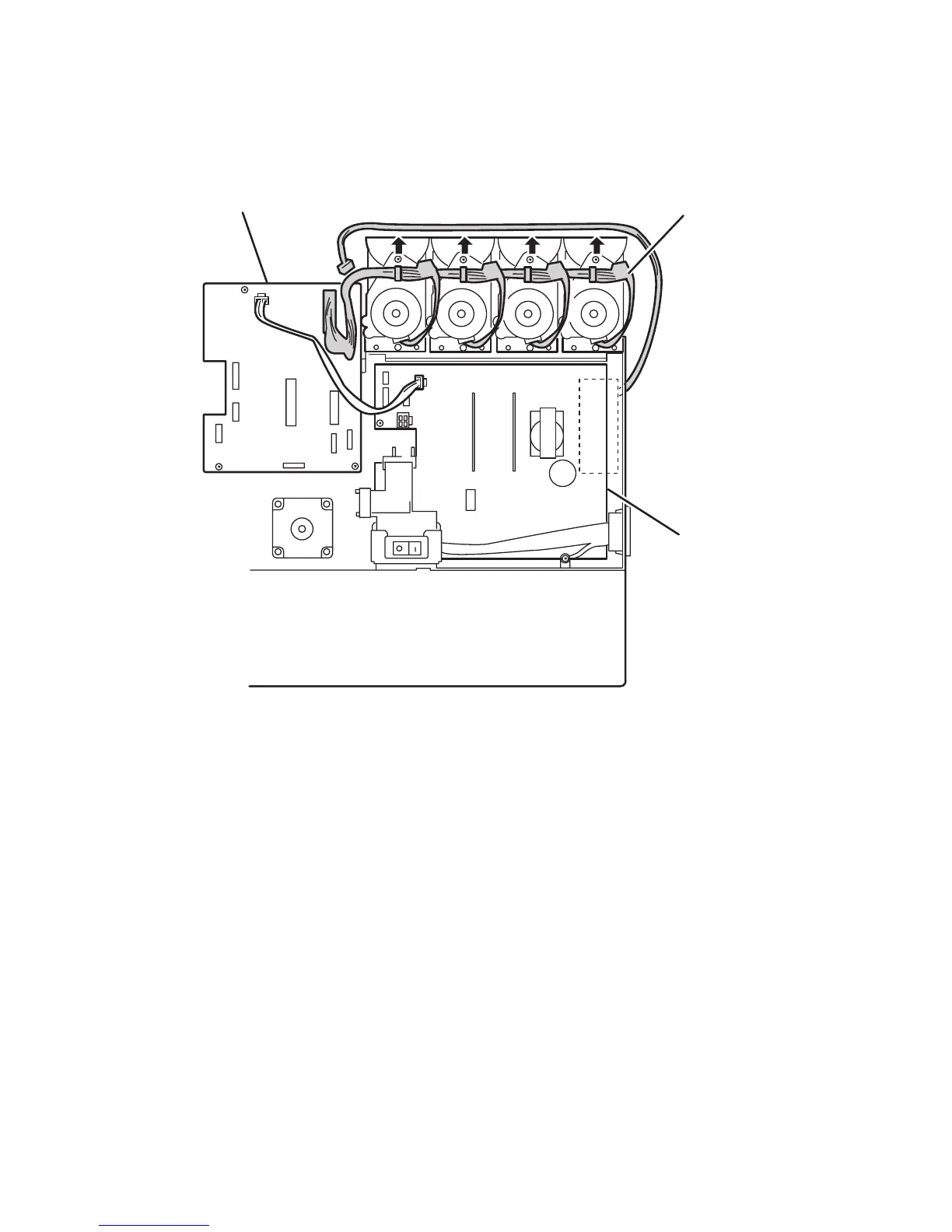

5. Disconnect P/J166 from the Low-Voltage Power Supply (item #2) to the rear fan
and remove the wiring harness from the wire guides on the right side of the
printer. Be very careful not to break the tabs on the wire guides.
6250-214
3
1
2
To Next Page
