Service Parts Disassembly 8-135
Circuit Board, STF (PL15.5.1)
1. Remove the Paper Tray from the STF.
2. Remove the Front Covers (page 8-130).
3. Remove the Cover Right (page 8-131).
4. Disconnect P/J81 from the Harness Feeder Plug Assembly.
5. Disconnect P/J82 from the Harness Assembly Tray 3.
6. Disconnect P/J84 from the Drive Assembly.

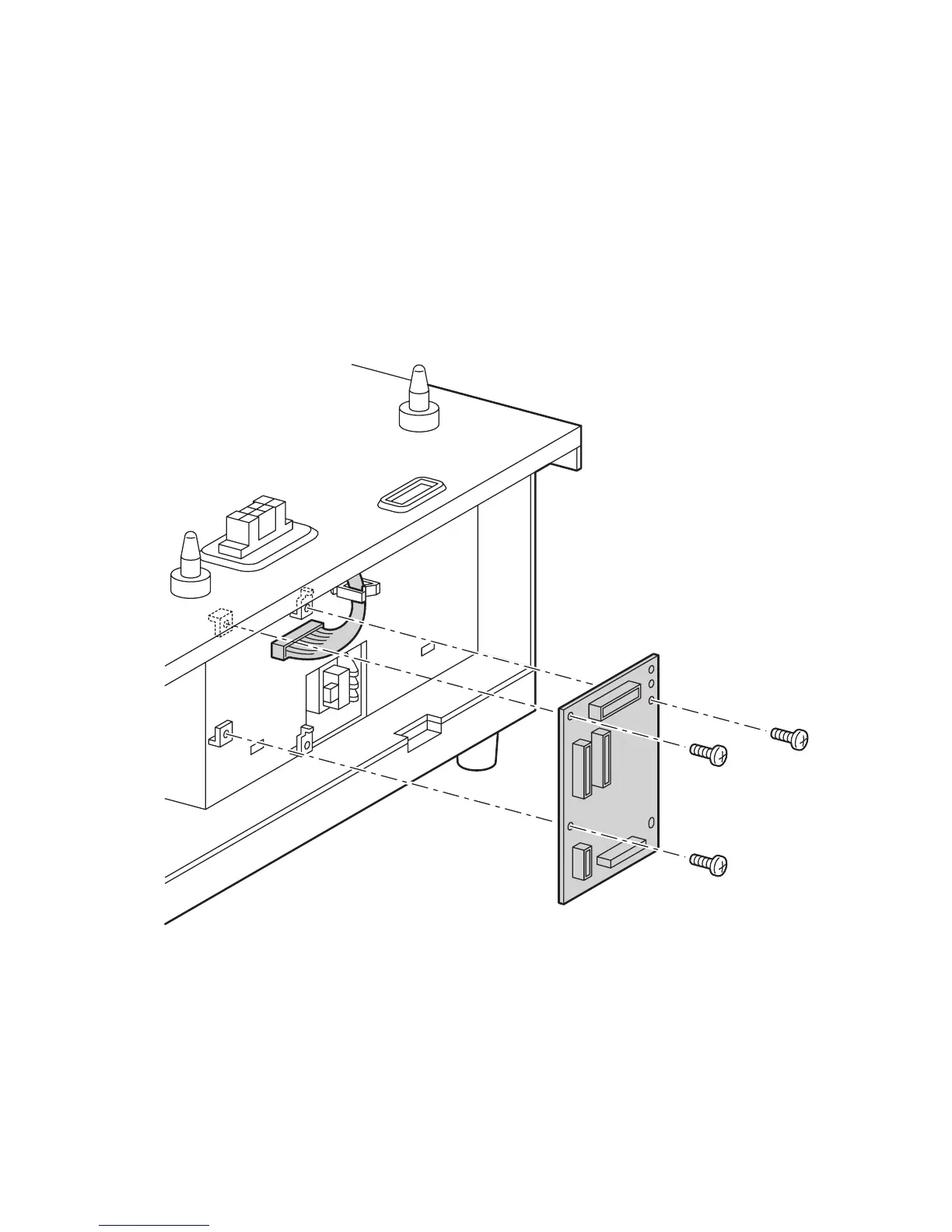

7. Remove the 3 screws securing the Power Feeder Circuit board to the STF frame
and remove the board.
Replacement Notes
Note
When replacing the Power Feeder Circuit Board, align the hole on the board
and the two tabs on the STF Frame.
6250-416
To Next Page
