Service Parts Disassembly 8-145
No Paper, Low Paper Sensor (PL15.5.6)
1. Remove the Paper Tray.
2. Remove the Cover Front (page 8-130).
3. Remove the Cover Right (page 8-131).
4. Remove the Turn Chute Assembly (page 8-132).
5. Remove the Indicator Assembly (page 8-137).
6. Remove the Bracket Low Paper.
7. Remove the STF Circuit Board (page 8-135).
8. Remove the Right Tray Guide (page 8-138).

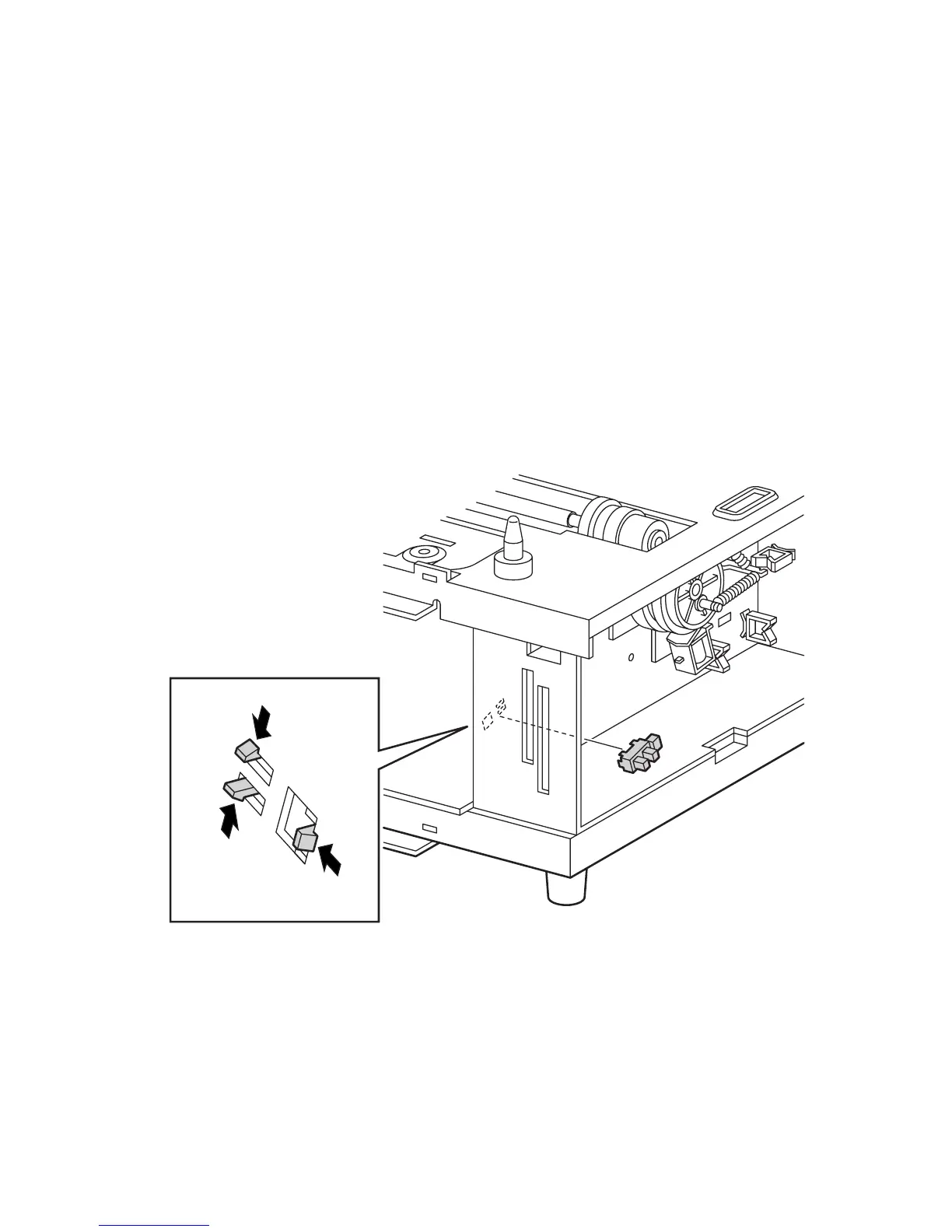

9. Release the 3 tabs securing the Sensor to the STF frame and remove the sensor.
Note
Use caution, the Sensor tabs are easily broken.
6250-422
To Next Page
