Xerox PHASER 6250 Service Manual

Service Parts Disassembly 8-73
Registration Sensor Actuator (PL 9.1.9) and
Registration Sensor (PL 9.1.8)

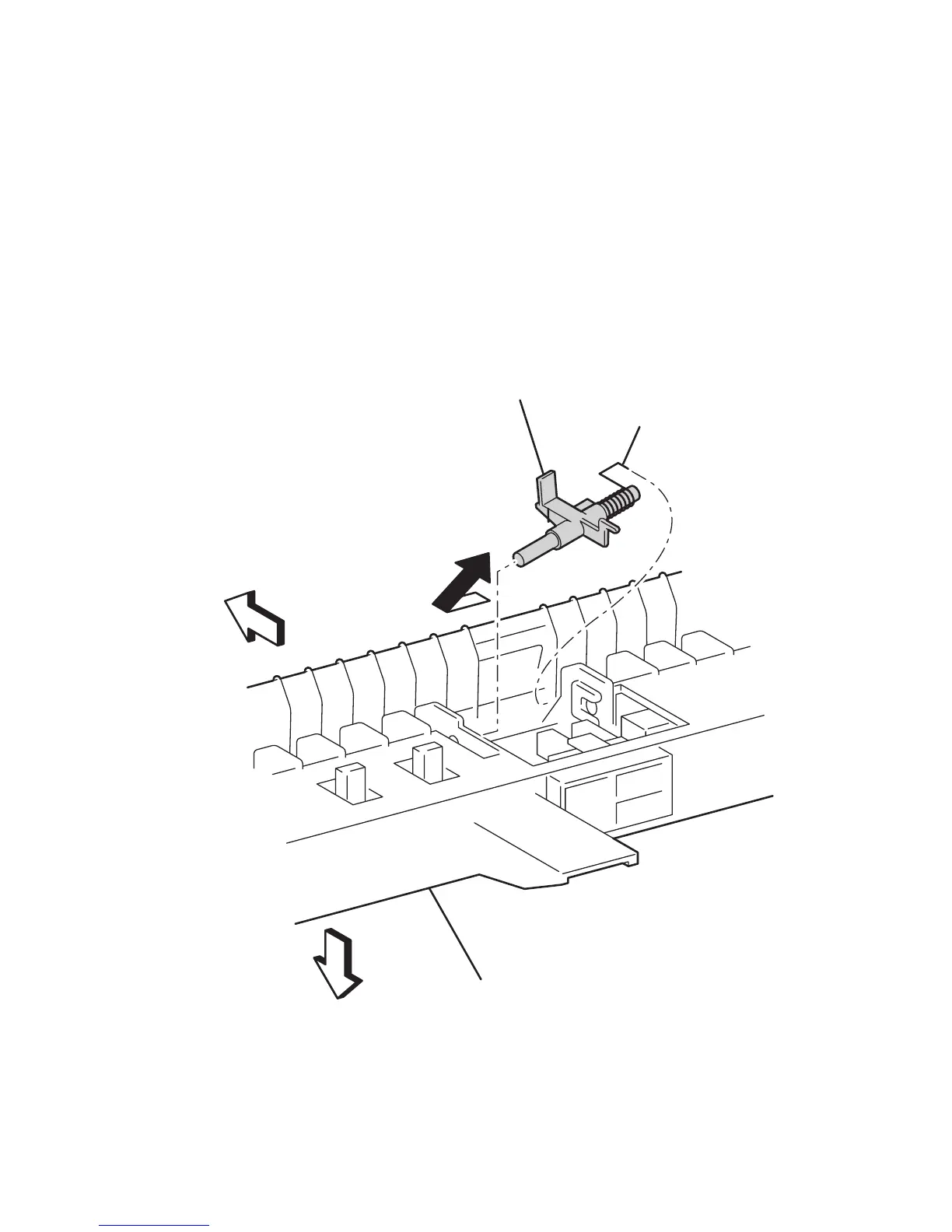

Removal of Actuator
1. Remove the Chute Assembly Registration (page 8-71).
2. Shift the actuator (item #1) to the left, lift up on the right side and remove.
3. Remove the actuator spring (item #2) from the Actuator.
Note
Make note of the orientation of the spring for reassembly.
1
6250-207
2
FRONT
TOP
CHUTE ASSY REGI
