8-132 Phaser 6250 Color Laser Printer Service Manual

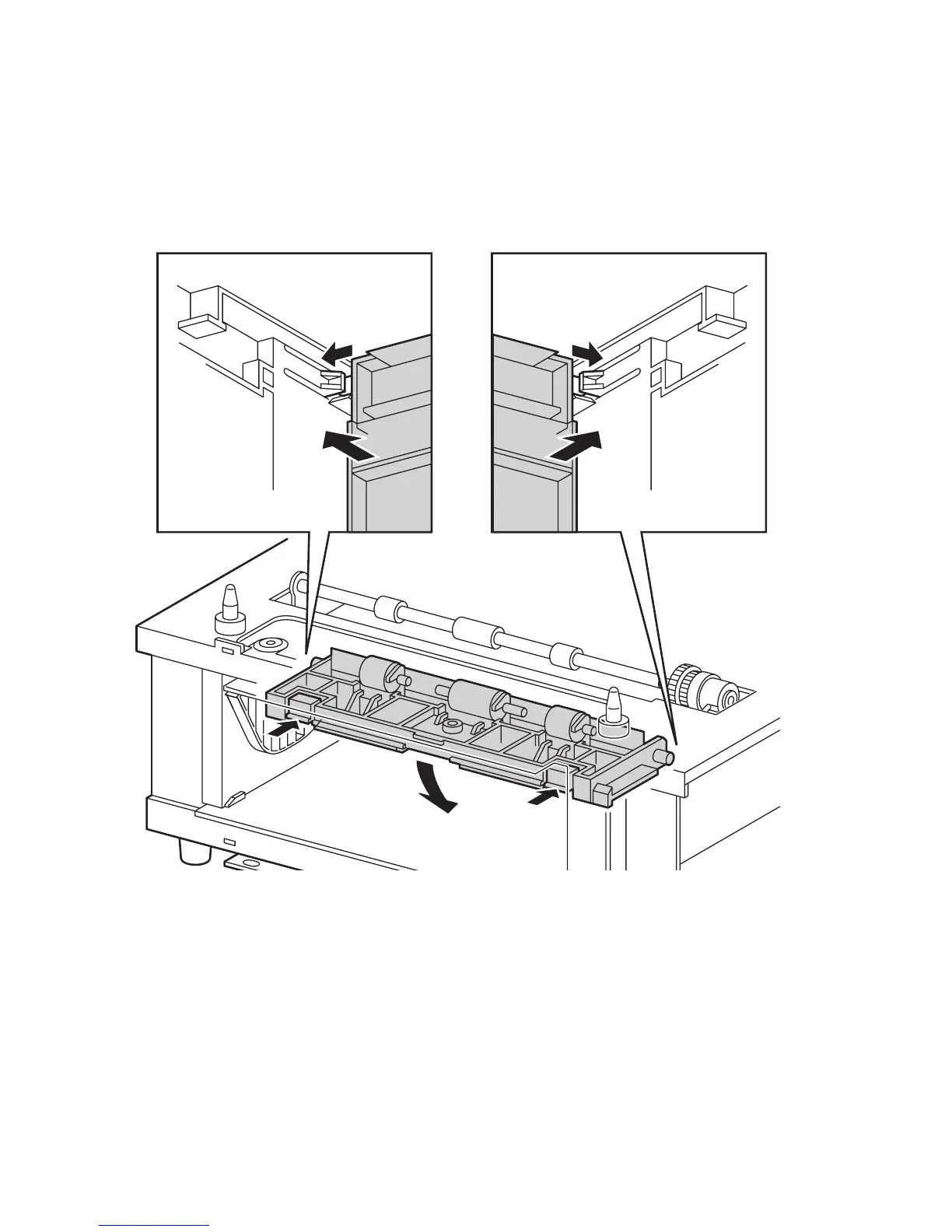

Turn Chute Assembly (PL15.3.9)
1. Remove the Paper Tray from the 500-sheet Feeder.
2. Holding the Chute Asssembly Turn, grip at both ends, push it down and release
the 2 tabs from the hole in the Frame Top.
3. Release the tabs securing the Chute Assembly Turn to the Tray Guide Left and
Right and remove the Chute Assemlby Turn.
To Next Page
