Service Parts Disassembly 8-129
Casters, Locking (PL 14.2.5)/Non-Locking (PL 14.2.6)

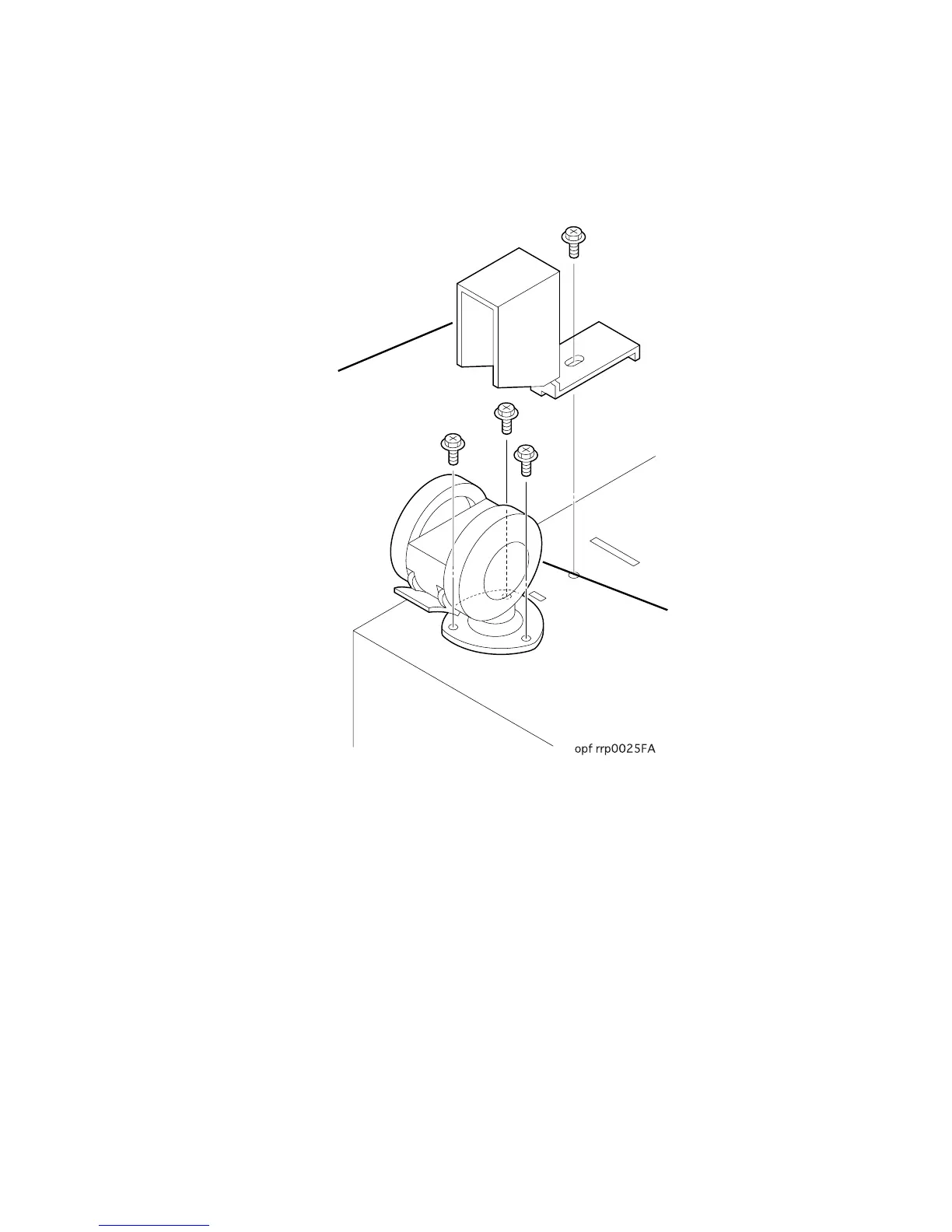

1. Remove both paper trays from the HCF.
2. Turn the HCF upside down to access the casters.
3. For the Locking (front) Casters only, remove 1 screw securing the Guide, Caster
(item #1) (PL 14.2.8) to the bottom of the HCF and remove the Guide.
4. Remove the 3 screws securing the Caster (item #2) (PL 14.2.5 or PL 14.2.6) to
the bottom of the HCF and remove the Caster.
Replacement Notes
Note
When replacing the Locking (front) Casters, ensure that the Caster is facing
forward as shown in the preceding figure before replacing the Guide, Caster.
1
2
