8-138 Phaser 6250 Color Laser Printer Service Manual
Right Tray Guide (PL15.3.5)and Low Paper Lever
(PL 15.5.7)
Guide Assembly Paper Tray Right
1. Remove the Paper Tray from the STF.
2. Remove the Front Covers (page 8-130).
3. Remove the Right Cover (page 8-131).
4. Remove the Turn Chute Assembly (page 8-132) .
5. Remove the Feeder Drive Assembly (page 8-136).
6. Remove the Indicator Assembly (page 8-137).
7. Remove the STF Circuit Board (page 8-135).

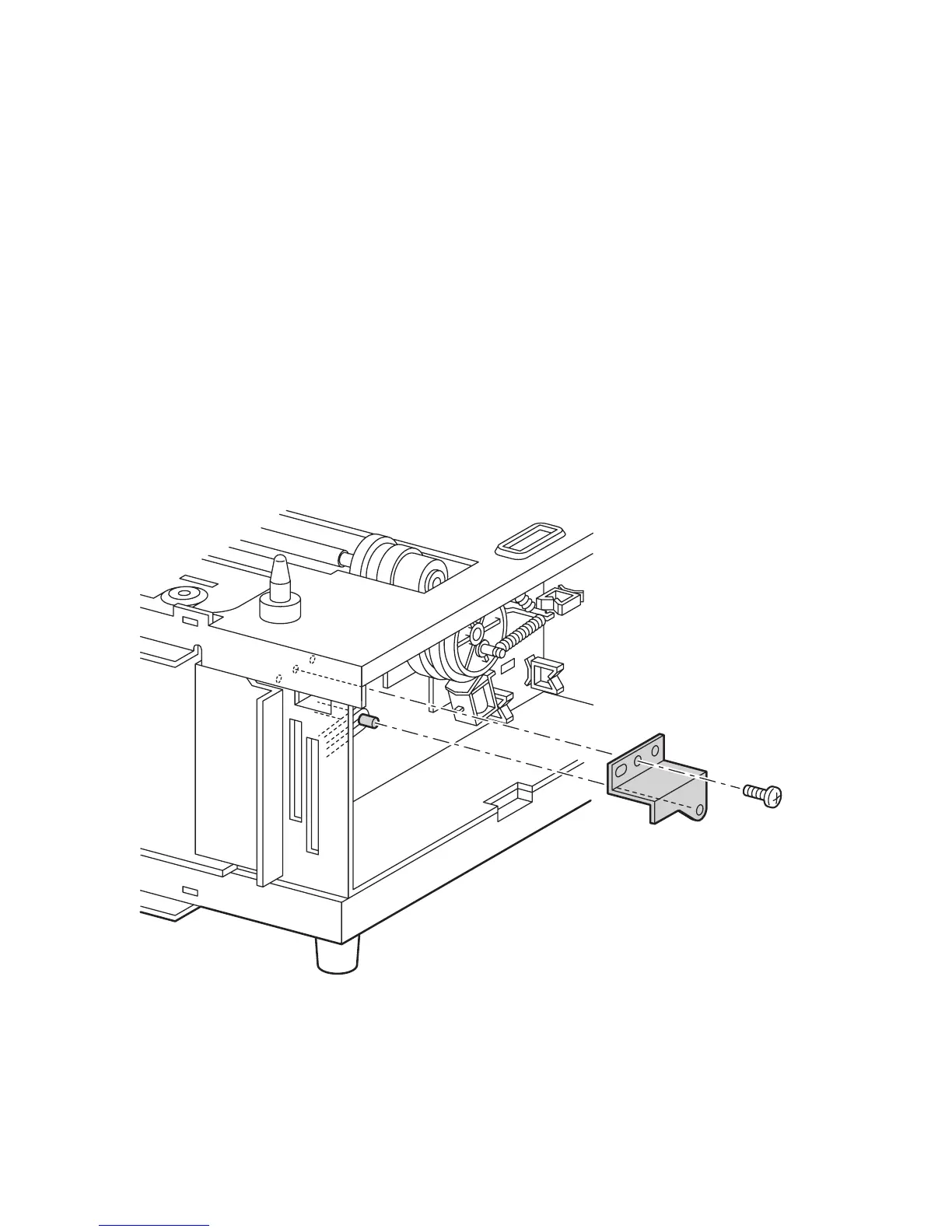

8. Remove the 1 screw securing the Low Paper Bracket to the STF frame.
9. Remove the Bracket.
10. Remove the 5 screws securing the Right Tray Guide to the STF frame.
6250-415
