Service Parts Disassembly 8-139

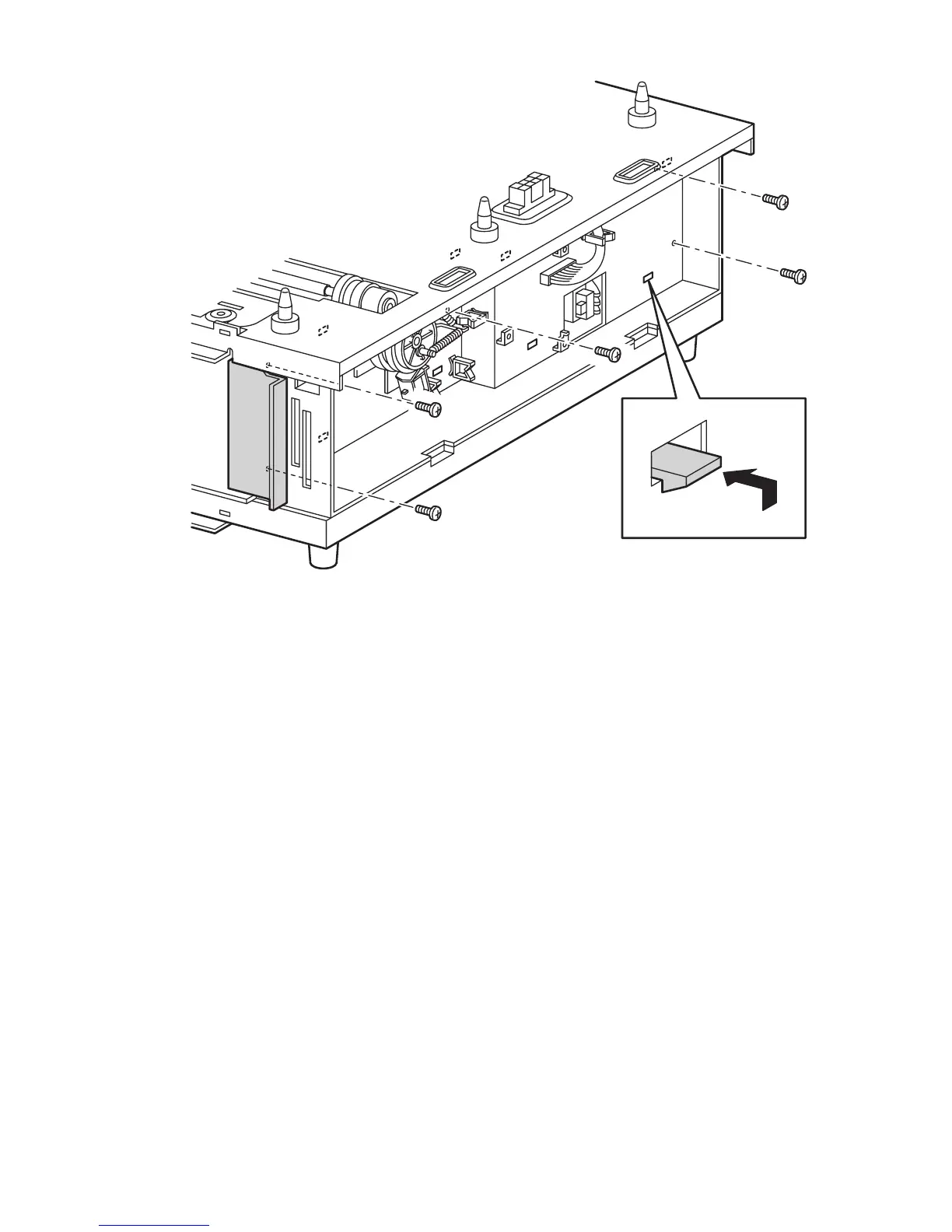

11. Release the 7 tabs securing the Right Tray Guide to the STF frame.

12. Carefully remove the Low Paper Lever from the slit in the Right Tray Guide.

6250-417
