Xerox PHASER 6250 Service Manual

Service Parts Disassembly 8-57

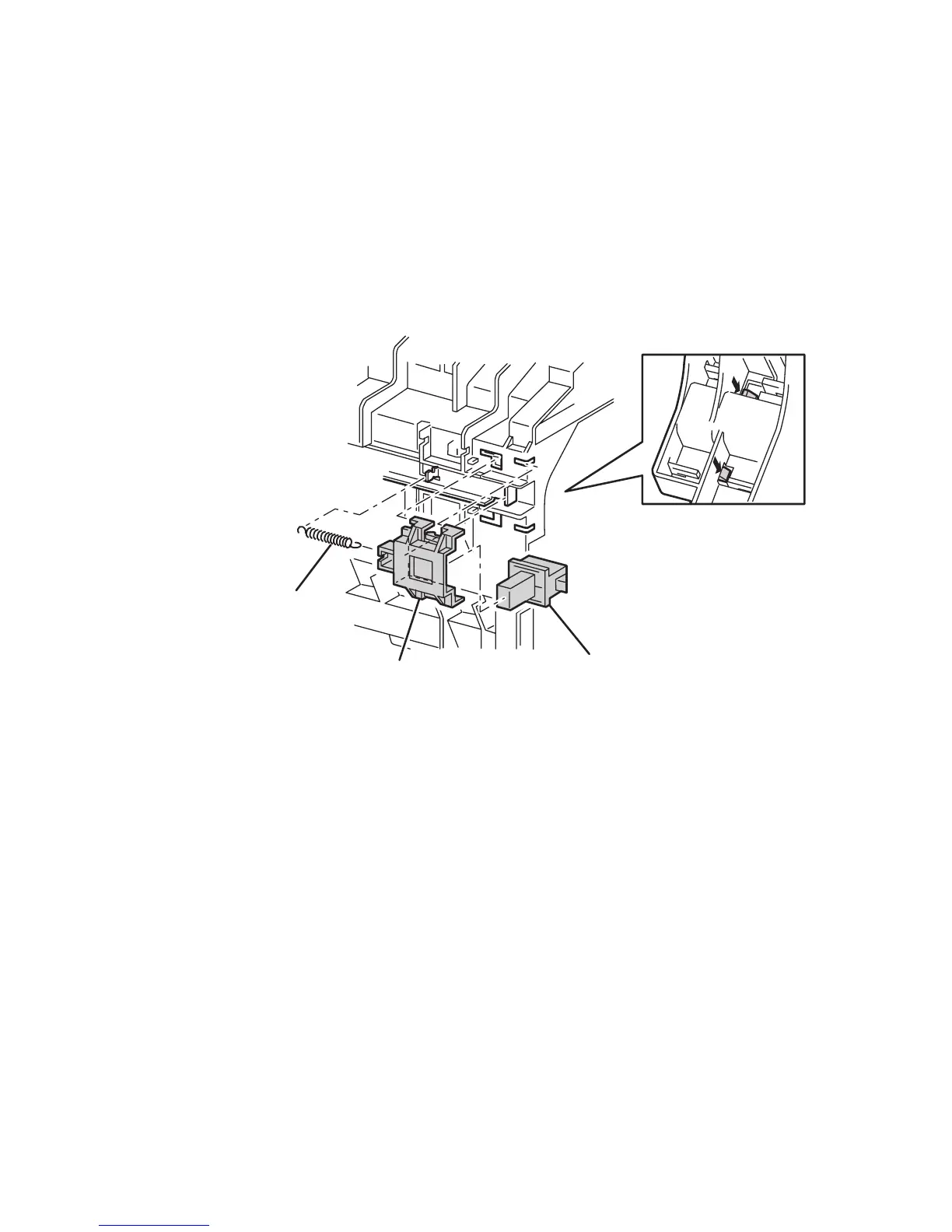

Latch Plate (PL 6.1.17), Latch Out (PL 6.1.18), Latch
Holder (PL 6.1.19), and Latch Spring Out (PL 6.1.20)
1. Remove the Front Right Cover (page 8-15).
2. Remove the Front Left Cover (page 8-16).
3. Remove the Spring Out (item #3) from the Chute Assembly Out.
4. Release the 2 tabs from the inside of the Chute Assembly Out.
5. Slide the Holder Latch (item #2) to the right and remove.
6. Remove the Latch Out (item #1) from the Holder.
6250-184
3
2
1
