Service Parts Disassembly 8-35

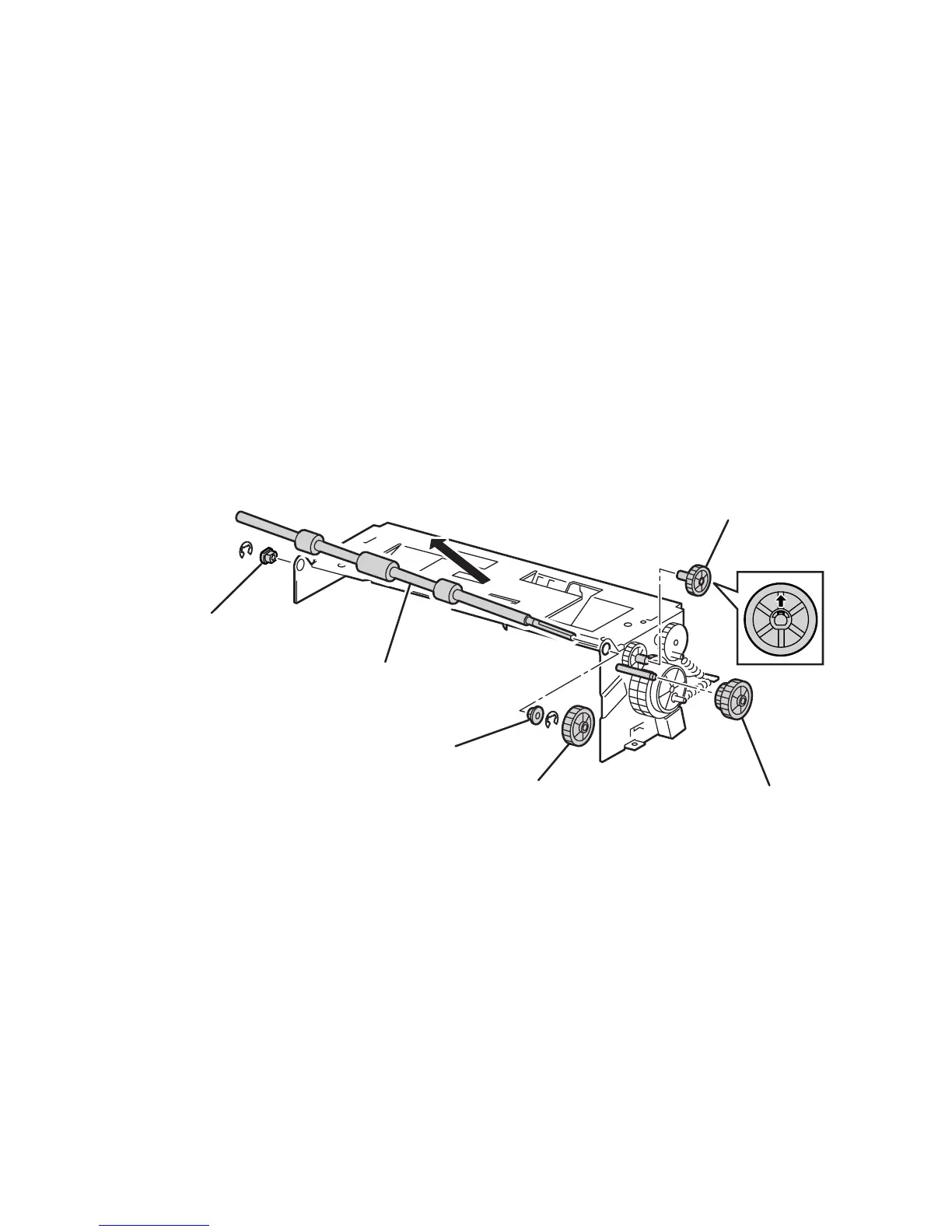

Roll Turn Assembly (PL3.3.20)
1. Remove the Printer Chassis from the Paper Feeder Assembly (page 8-20).
2. Remove the Paper Pick Assembly (page 8-22).
3. Remove the Clutch Turn Assembly (page 8-34).
4. Release the tab securing the Gear Feed 2 (item 2#) to the shaft of the Paper Pick
Assembly and pull out the Gear Feed 2.
5. Pull out the Idler Gear (item #1) and Idler Gear In (item #3) from the Paper Pick
Assembly.
6. Remove the right and left e-rings securing the shaft of the Roll Turn Assembly to
the Paper Pick Assembly.
7. Remove the metal bearing (item #6) securing the right shaft end of the Turn Roll
Assembly.
8. Remove the black bearing (item #4) securing the left shaft end of the Roll Turn
Assembly.
9. Remove the shaft (item #5) from the Paper Pick Assembly.
Replacement Notes
Note
Ensure that metal bearing is replaced on the clutch end of the shaft.
6250-161
4
6
3
2
1
5
To Next Page
