Xerox PHASER 6250 Service Manual

2-32 Phaser 6250 Color Laser Printer Service Manual

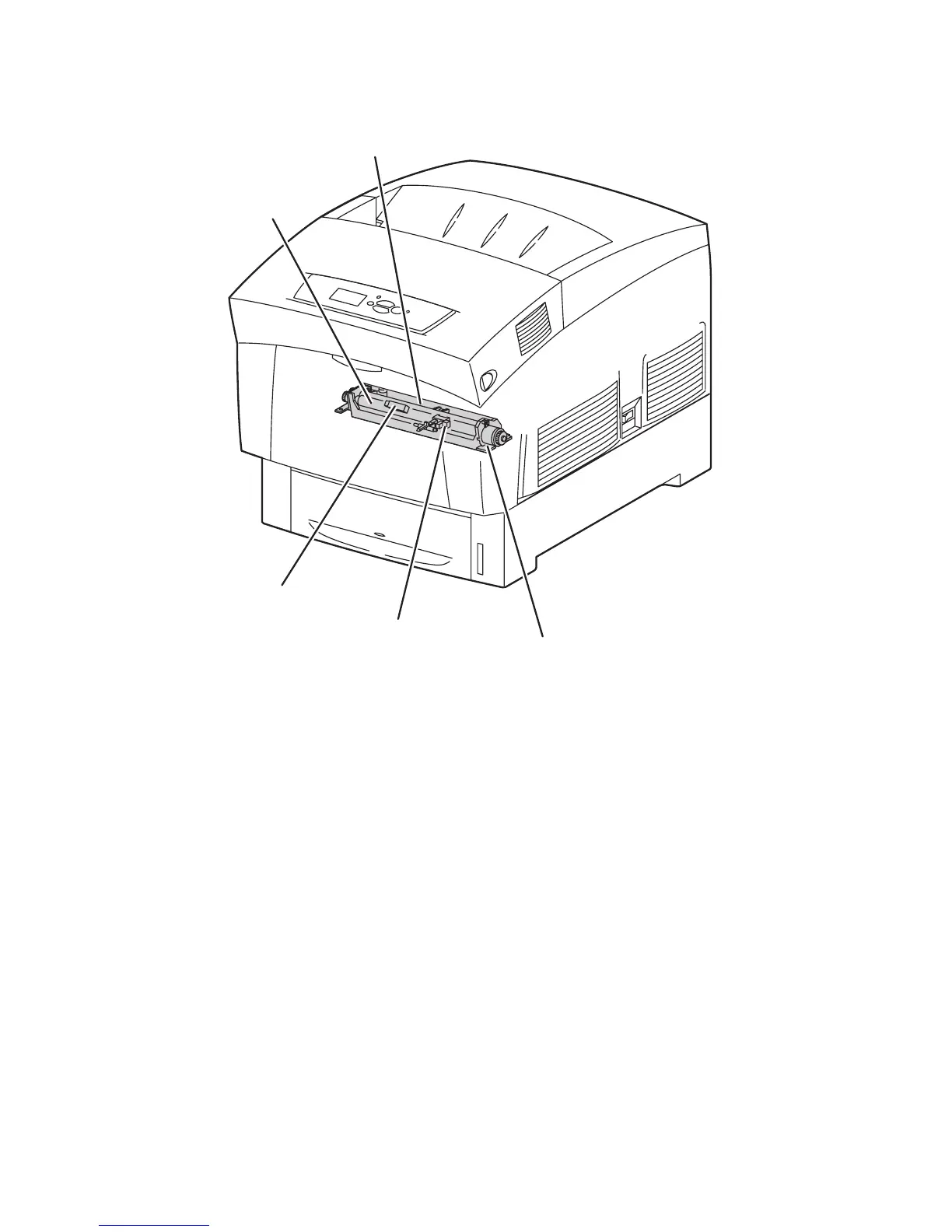

Chute Assembly Registration (REGI)
1. Registration Roller (Rubber): Receives drive energy from the main drive
assembly through the registration clutch. Works with the registration metal roller
to correct media skew and transport the media from paper tray 1 or 2.
2. Registration Roller (Metal): Works in conjuction with the rubber roller.
When the leading edge of the paper arrives at the registration rubber roller/metal
roller, the rollers are not turning and the paper buckles against the rollers to
correct any skew at the leading edge.
3. OHP (Transparency) Sensor: Paper reflects radiated light and the OHP
sensor can sense reflected light and identify the print media as paper. If the OHP
sensor cannot sense reflected light, it identifies the print media as OHP
(transparency).
4. Registration Sensor: Detects the when the print media leading edge has
reached the Registration Chute.
5. Registration Clutch: Transmits the drive from the main drive assembly to the
registration rollers once media skew has been corrected.
1
2
3
4
5
6250-496
