Xerox PHASER 6250 - Link Actuator (PL 15.4.6)

Service Parts Disassembly 8-143
Link Actuator (PL 15.4.6)
1. Remove the Paper Tray from the STF.
2. Remove the paper tray Rear Cover.

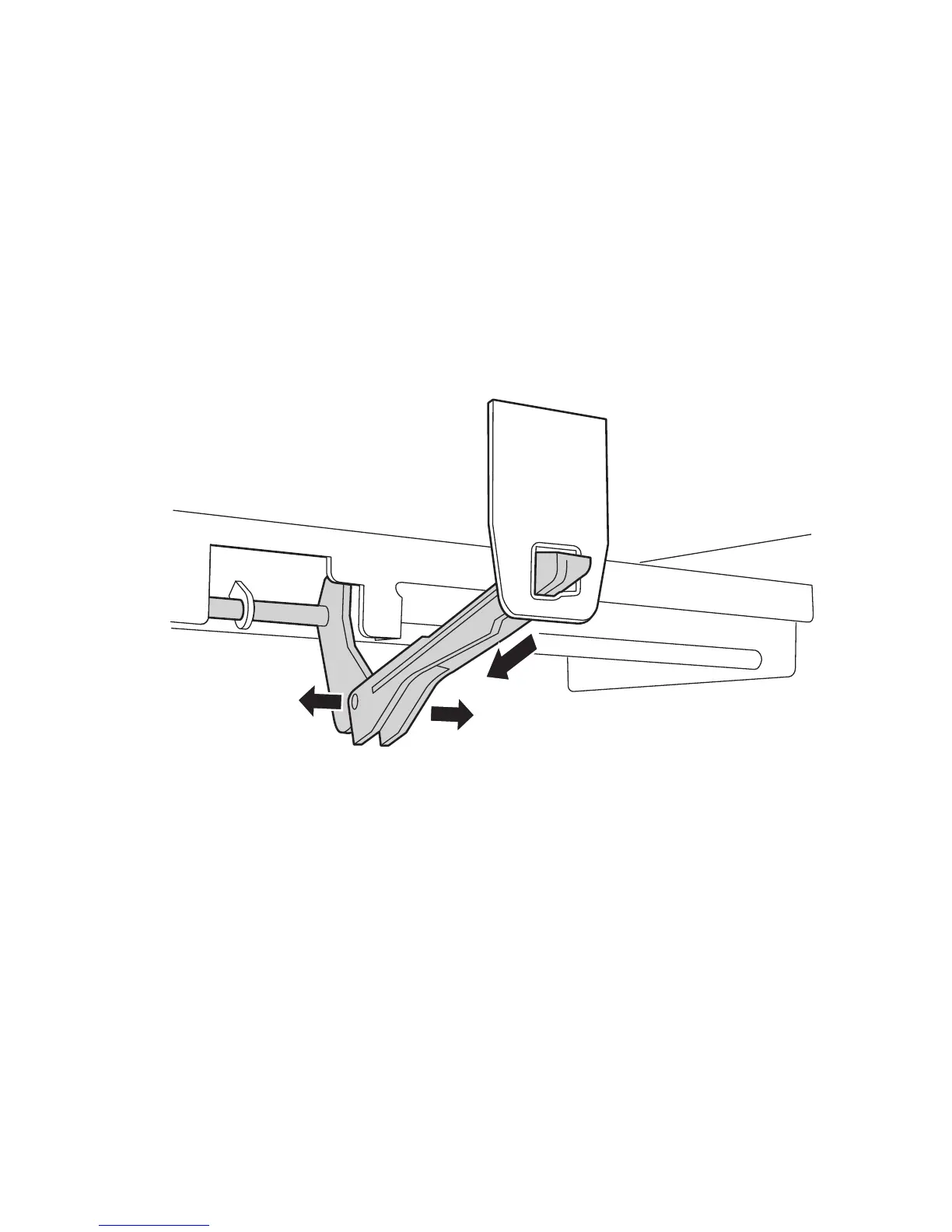

3. Reach in through the rear of the STF and spread the tabs of the Link Actuator
apart.
4. Remove the link actuator from the bracket in the STF.
5. Remove the actuator.
Note
When replacing, positon the Actuator so that the wider portion is on the right
side viewe from the front. Replace it after passing the tip of the Link
Actuator into the hole in the STF frame.
6250-279
