Service Parts Disassembly 8-67

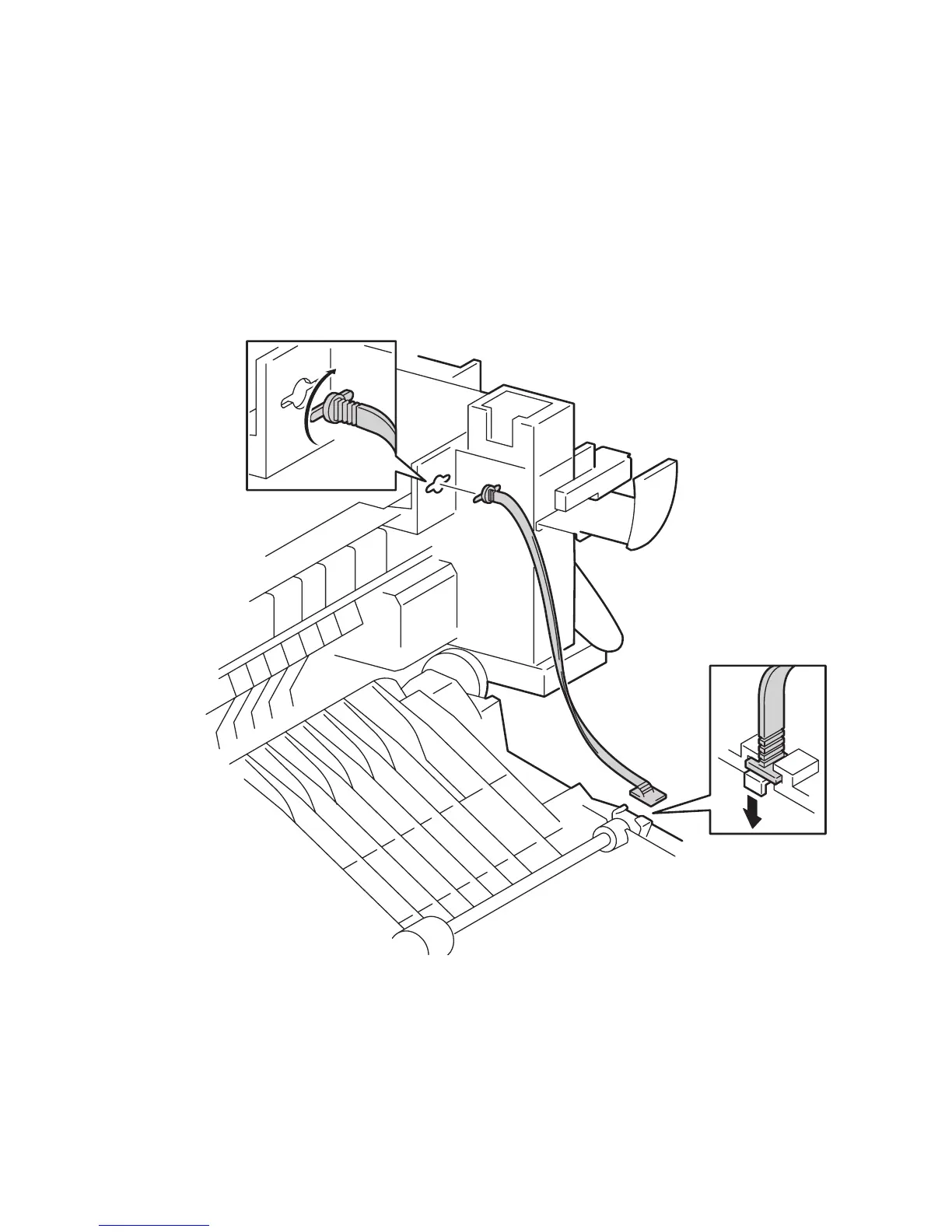

Strap (PL 8.1.13)
1. Open Door B.
Caution
Support Door B when removing the strap to prevent damage to the unit, and
continue to provide support or latch the door when the strap is removed.
2. Turn the top of the strap 90 degrees and remove top end of strap.
3. Push down on the strap retainer tab and slide the bottom end of the strap out of
the slot.
To Next Page
