Xerox PHASER 6250 Service Manual

Service Parts Disassembly 8-65
Duplex Motor Assembly (PL 7.1.8)

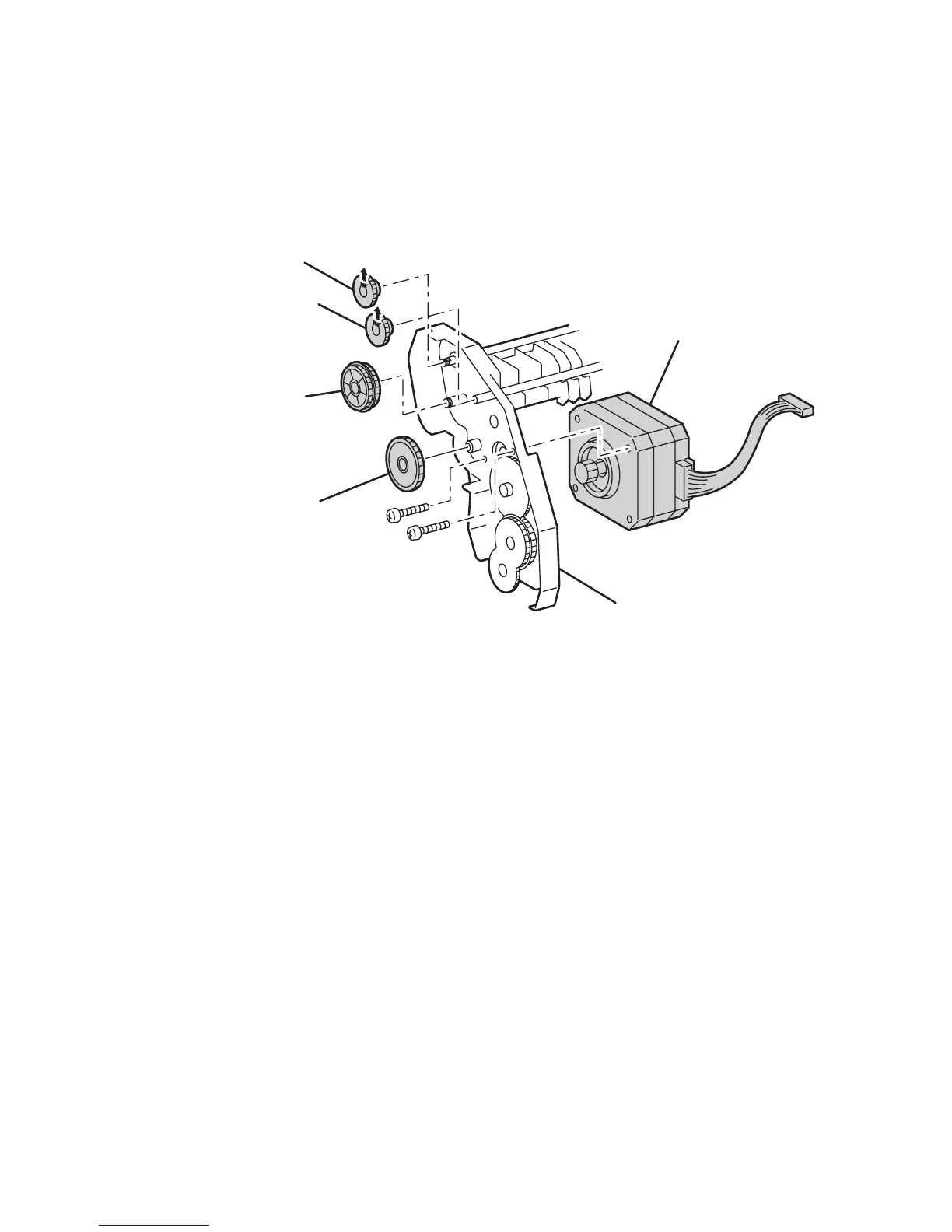

1. Remove the Chute Assembly Exit (item #1) (page 8-62).
2. Rotate Gear 48 (item #2) to access 1 screw securing the Duplex Motor Assembly
(item #6) to the Chute Assembly Exit, then remove the other screw.
3. Remove the Duplex Motor Assembly from the Chute Assembly Exit.
1. Chute Assembly Exit 4. Gear Mid Roller
2. Gear 48 5. Gear Exit roller
3. Gear 40/42 6. Motor Assembly Duplex
6250-196
5
4
3
2
6
1
