8-124 Phaser 6250 Color Laser Printer Service Manual
Link Actuator (PL 14.4.6)
1. Remove both Paper Trays from the HCF.
2. Remove the paper tray Rear Cover.

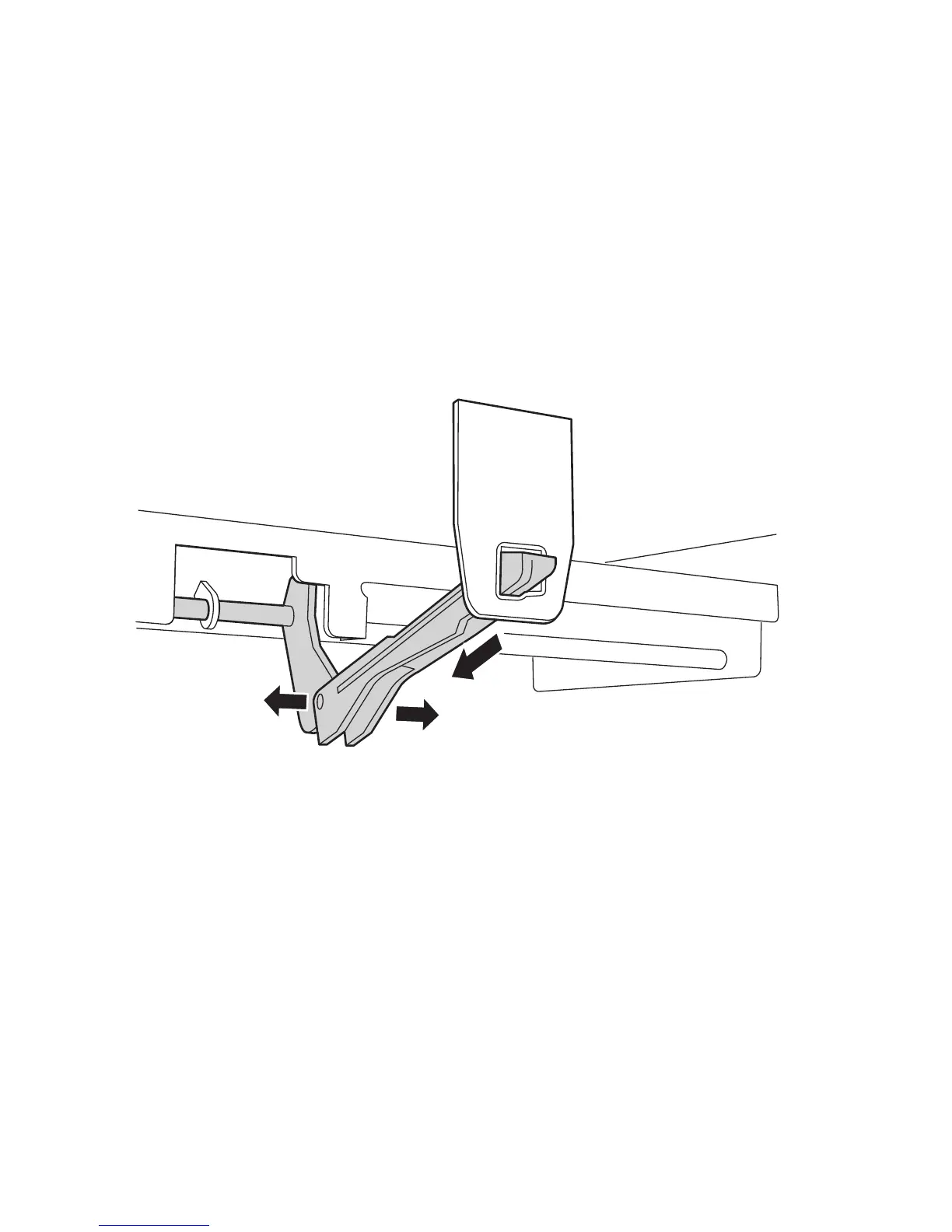

3. Reach in through the rear of the printer and spread the tabs of the Link Actuator
apart.
4. Remove the link actuator from the bracket in the printer.
5. Remove the actuator.
Note
When replacing, positon the Actuator so that the wider portion is on the right
side viewe from the front. Replace it after passing the tip of the Link
Actuator into the hole in the HCF frame.
6250-279
To Next Page
