Xerox PHASER 6250 Service Manual

Theory of Operation 2-33

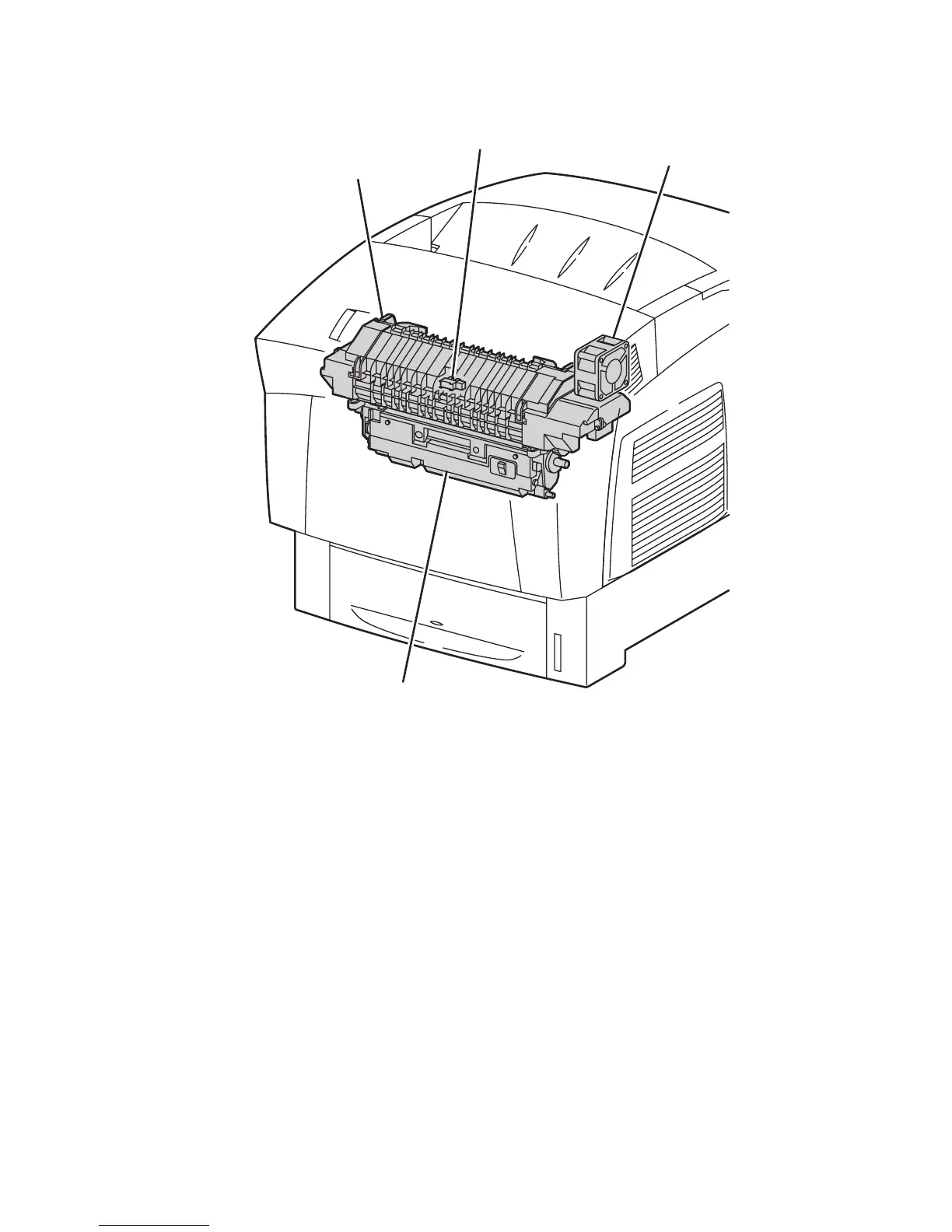

Transfer Roller and Fuser Assembly
1. Fuser Assembly: Using heat and pressure, the fuser assembly fixes the
transferred toner onto print media.
Parts of the Fuser Assembly:
2. Exit Sensor: Detects passage of the print media after fusing.
3. Fuser Fan: Cools the fuser assembly to prevent overheating.
4. Transfer Roller: Consists of the transfer roller and a waste toner recovery
system. The transfer roller transfers the image from IDT2 in the imaging unit
onto the print media.
■ Heat Roll ■ Heat Lamp
■ Thermostat ■ Temperature Sensor
■ Belt Unit ■ Exit Roll Assembly
■ Exit Sensor ■ CRUM
6250-061
1
2
3
4
