9-50 Phaser 6250 Color Laser Printer Service Manual

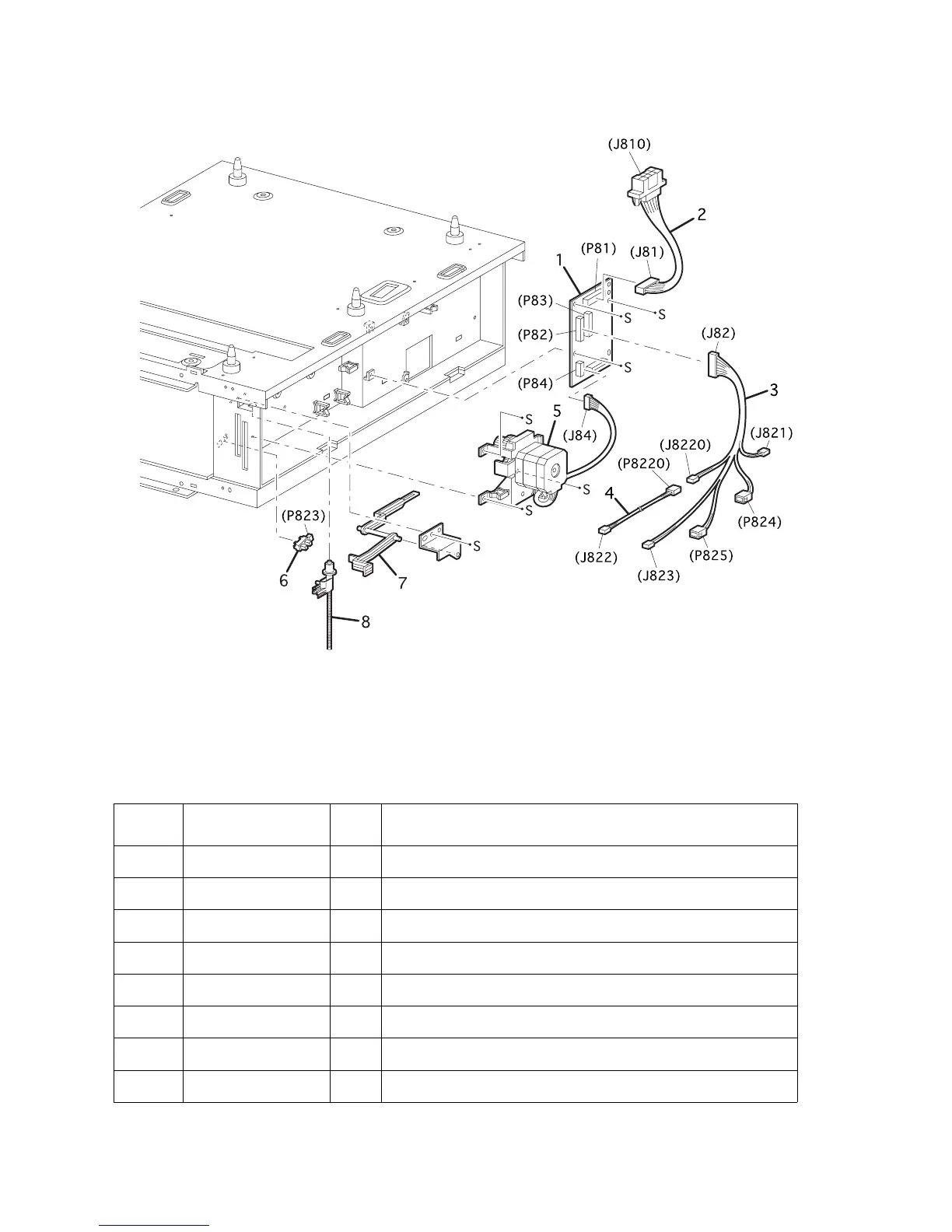

PL 15.5 500-sheet Feeder Harness, Board and Motor
PL 15.5 500-sheet Feeder Harness, Board, Motor - Service Parts List Table
ID No. Part Number Qty Name/Description
1. 116-1622-00* 1 Circuit Board, Lower Feeder
2. 116-1519-00 1 Assembly, OPT Feeder Plug
3. 116-1623-00* 1 Assembly, Harness, Tray 3
4. 116-1526-00 1 Assembly, Harness, NPRSJ
5. 116-1635-00* 1 Assembly, Drive, Feeder (Single Tray)
6. 116-1354-00 1 Sensor, No Paper, Low Paper
7. 116-1524-00 1 Lever, Low Paper
8. 1 Assembly, Indicator (NS)
6250-430
To Next Page
