8-94 Phaser 6250 Color Laser Printer Service Manual

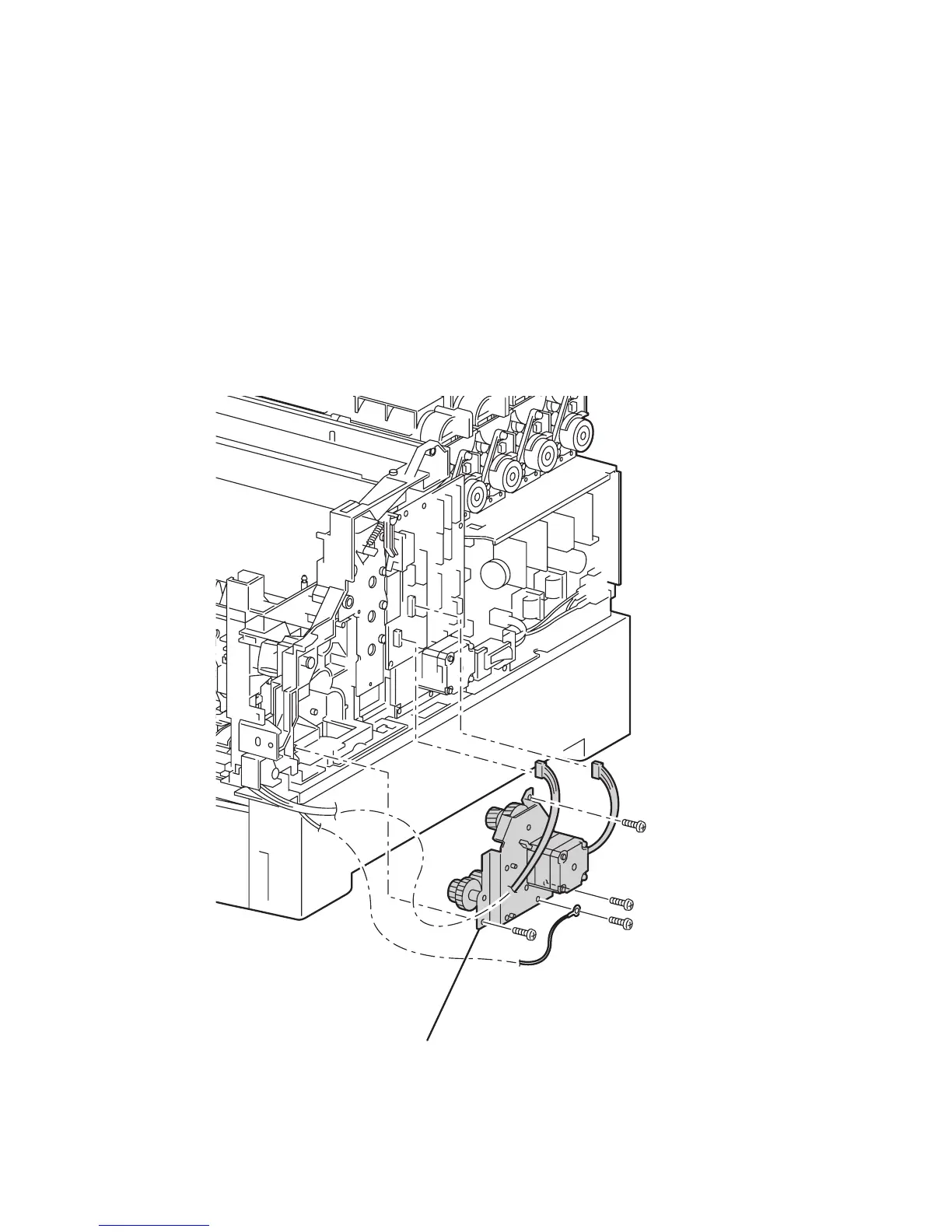

Main Drive Assembly (PL 11.1.14)
1. Remove the Cover Top Main (page 8-9).
2. Remove the Cover Front Right (page 8-15).
3. Remove the Cover Right (page 8-11).
4. Remove the Link: Right (page 8-13).
5. Disconnect the P/J48 from the Motor Driver Board.
6. Free the harness from the clamp on the Main Drive Assembly.
7. Remove the grounding screw.
8. Remove the 3 screws securing the Main Drive Assembly to the printer.
9. Remove the Main Drive (item #1).
1
6250-225
To Next Page
