8-42 Phaser 6250 Color Laser Printer Service Manual
CTD (ADC) Sensor (PL 5.1.11)

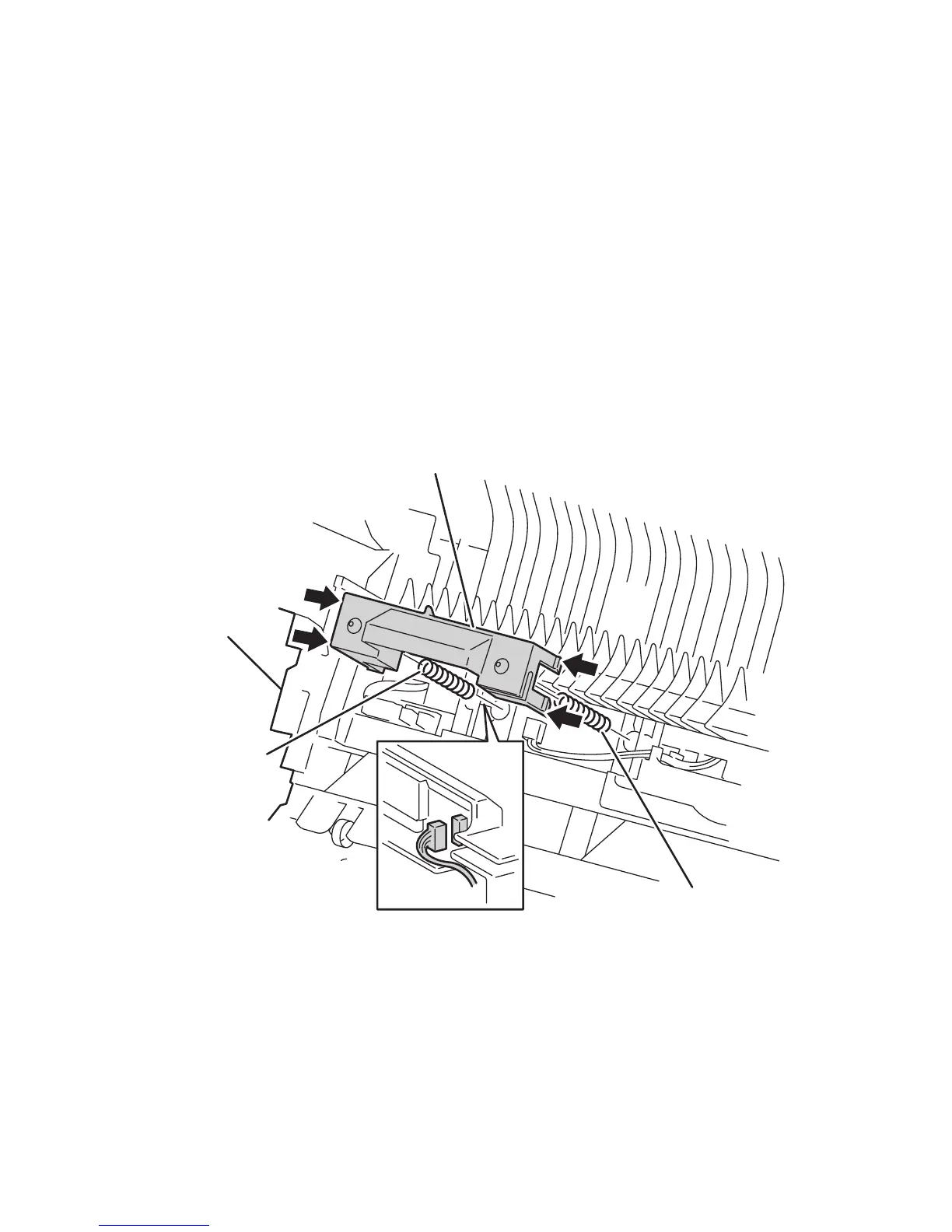

1. Open Door A.
2. Remove the Transfer Roller Assembly (Routine Maintenance Item) (page 8-4).
3. Release the 4 tabs securing the CTD Sensor Assembly (item #1) to the Chute
Assembly In (item #2) .
Caution
The CTD Sensor is under spring tension, be careful not to damage or lose the
springs.
4. Raise the sensor slightly to disconnect P/J136 (yellow) from the Chute Assembly
In.
5. Remove the CTD Sensor.
6. Remove the springs (item #3) from the Sensor CTD (ADC) Assembly.
Replacement Notes
Note
The left spring has an aligning post on the Chute Assembly In.
6250-170
1
2
3
3
To Next Page
