Xerox PHASER 6250 Service Manual

Service Parts Disassembly 8-43
Toner Full Sensor (PL 5.1.13)

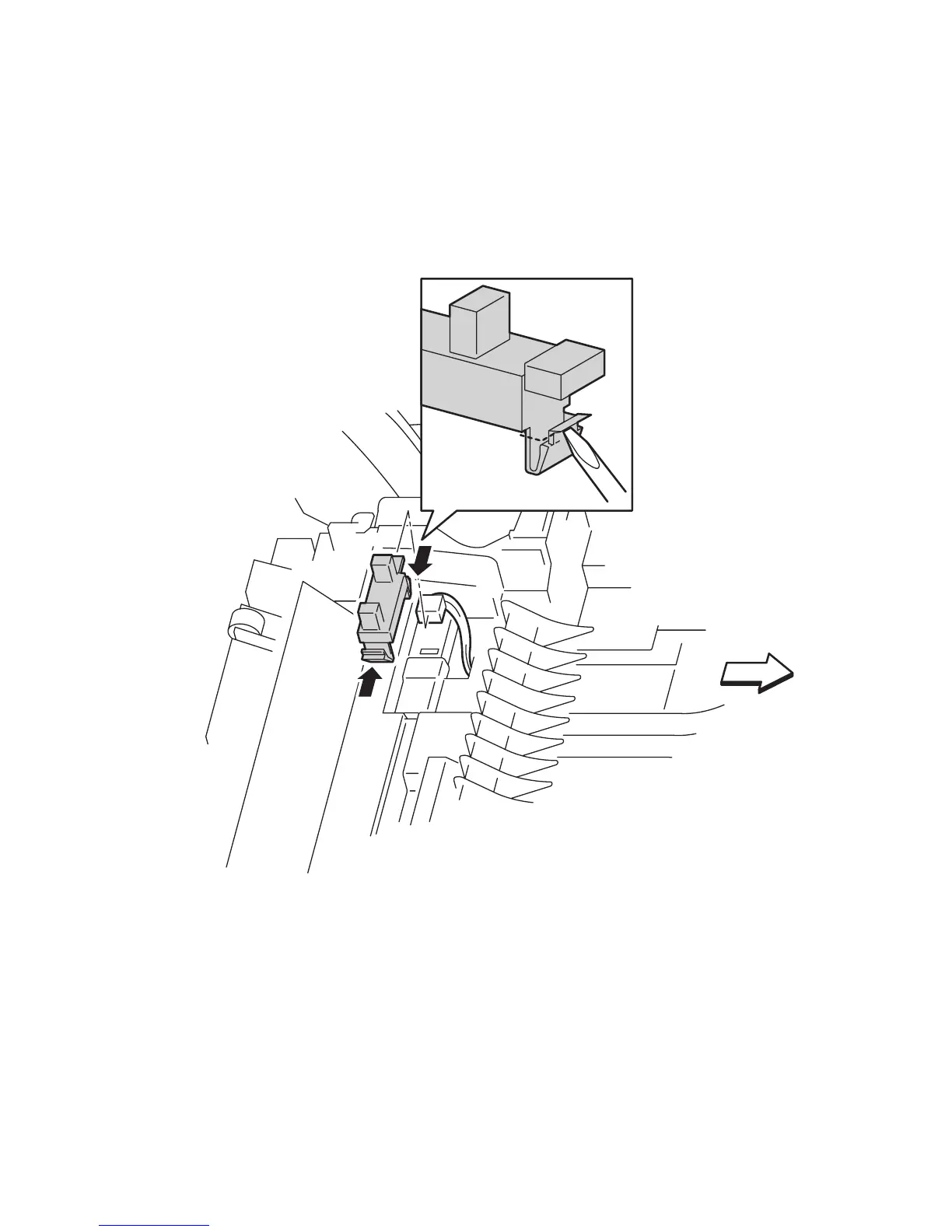

1. Open Door A.
2. Remove the Transfer Roller Assembly (Routine Maintenance Item) (page 8-4).
3. Disconnect P/J142 from the Chute Assembly In.
4. Release 2 tabs securing the Toner Full Sensor with a small screwdriver.
5. Remove the Toner Full Sensor from the Chute Assembly In.
FRONT
6250-171
