8-112 Phaser 6250 Color Laser Printer Service Manual

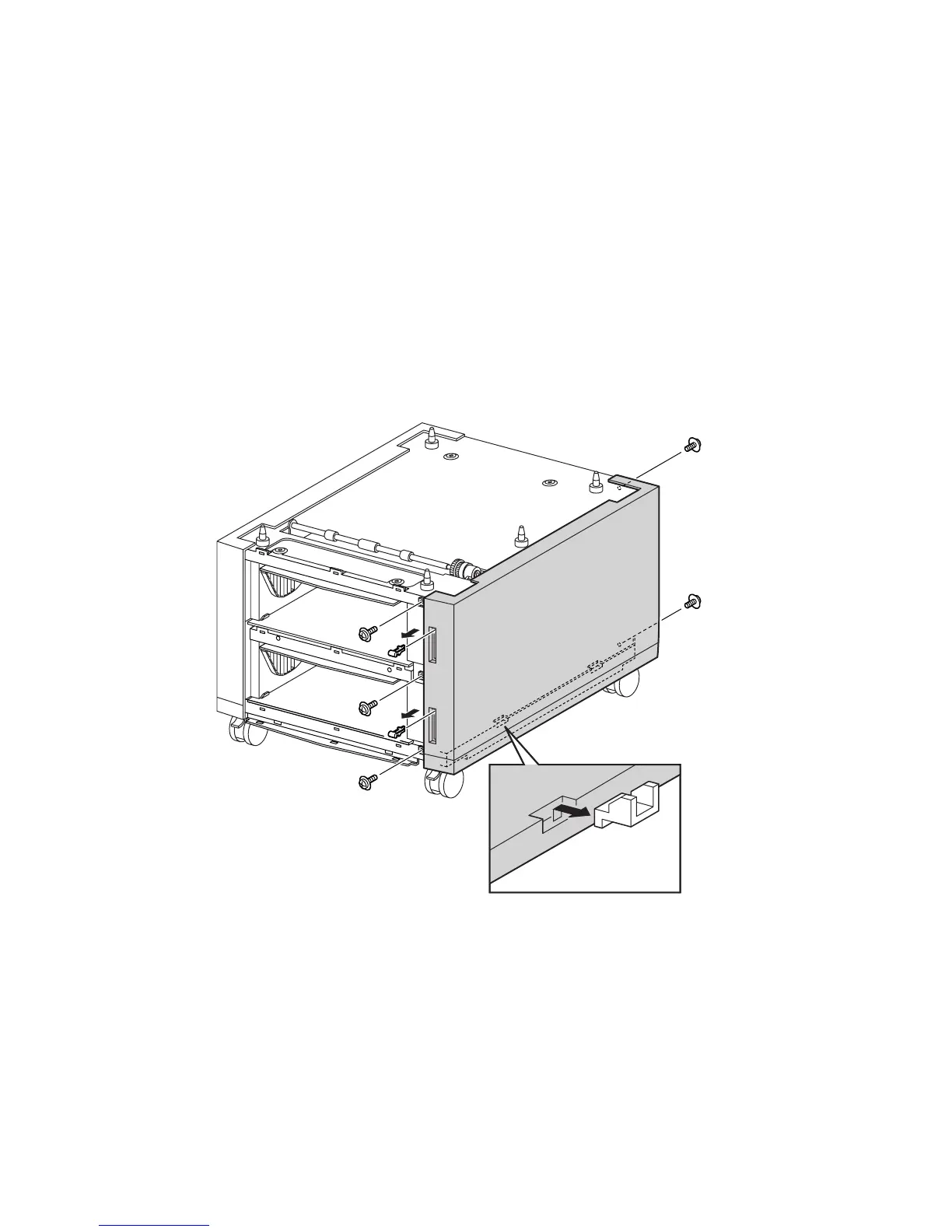

Cover, Right (PL14.2.1) and Cover, Left (PL14.2.3)
1. Remove Paper Trays 3 and 4.
2. Remove the Front Covers (page 8-111).
3. Remove the 5 screws securing the Cover Right and the 5 screws securing the
Cover Left.
4. Holding both ends of the cover, lift the cover and move left and right, flexing
slightly, to release the tabs from the holes in the Feeder frame.
5. Slide the cover toward the front to remove the Indicator Assembly.
Note
The Indicator Assembly flags will pop off.
6. Remove the Cover Right / Left.
6250-269
To Next Page
