Service Parts Disassembly 8-127
No Paper, Low Paper Sensor (PL14.5.7)
1. Remove the Paper Trays.
2. Remove the Cover Front (page 8-111).
3. Remove the Cover Right (page 8-112).
4. Remove the Turn Chute Assembly (page 8-113).
5. Remove the Indicator Assembly (page 8-118).
6. Remove the Bracket Low Paper, upper and lower.
7. Remove the HCF Circuit Board (page 8-116).
8. Remove the Right Tray Guide (page 8-119).

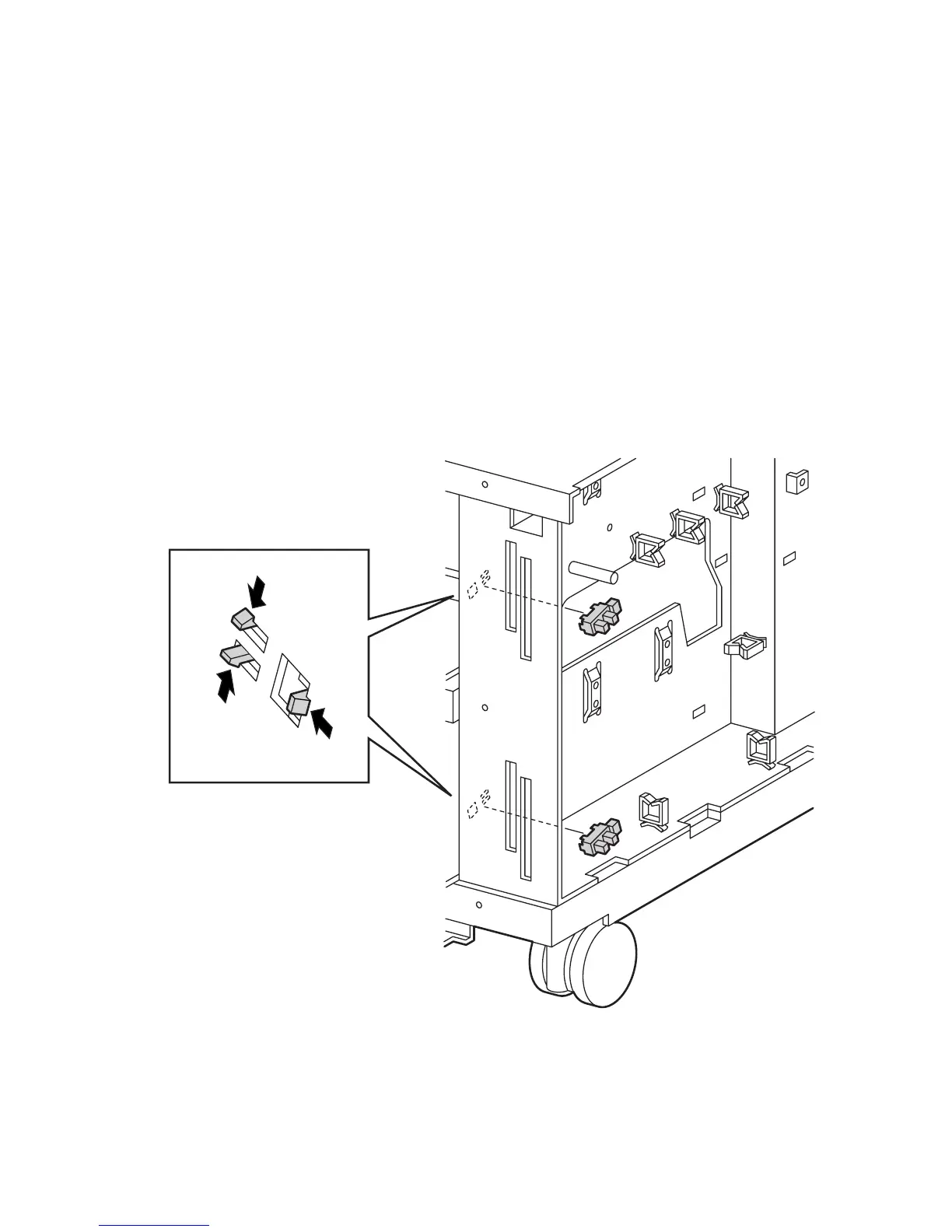

9. Release the 3 tabs securing the Sensor to the HCF frame and remove the sensor.
Note
Use caution, the Sensor tabs are easily broken.
6250-283
