Xerox PHASER 6250 - Right Tray Guide (Pl14.3.5)And Low Paper Lever (PL 14.5.8)

Service Parts Disassembly 8-119
Right Tray Guide (PL14.3.5)and Low Paper Lever
(PL 14.5.8)
Guide Assembly Paper Tray Right
1. Remove both Paper Trays from the HCF.
2. Remove the Front Covers (page 8-111).
3. Remove the Right Cover (page 8-112).
4. Remove the Turn Chute Assembly (page 8-113) .
5. Remove the Feeder Drive Assembly (page 8-117).
6. Remove the Indicator Assembly (page 8-118).
7. Remove the HCF Circuit Board (page 8-116).

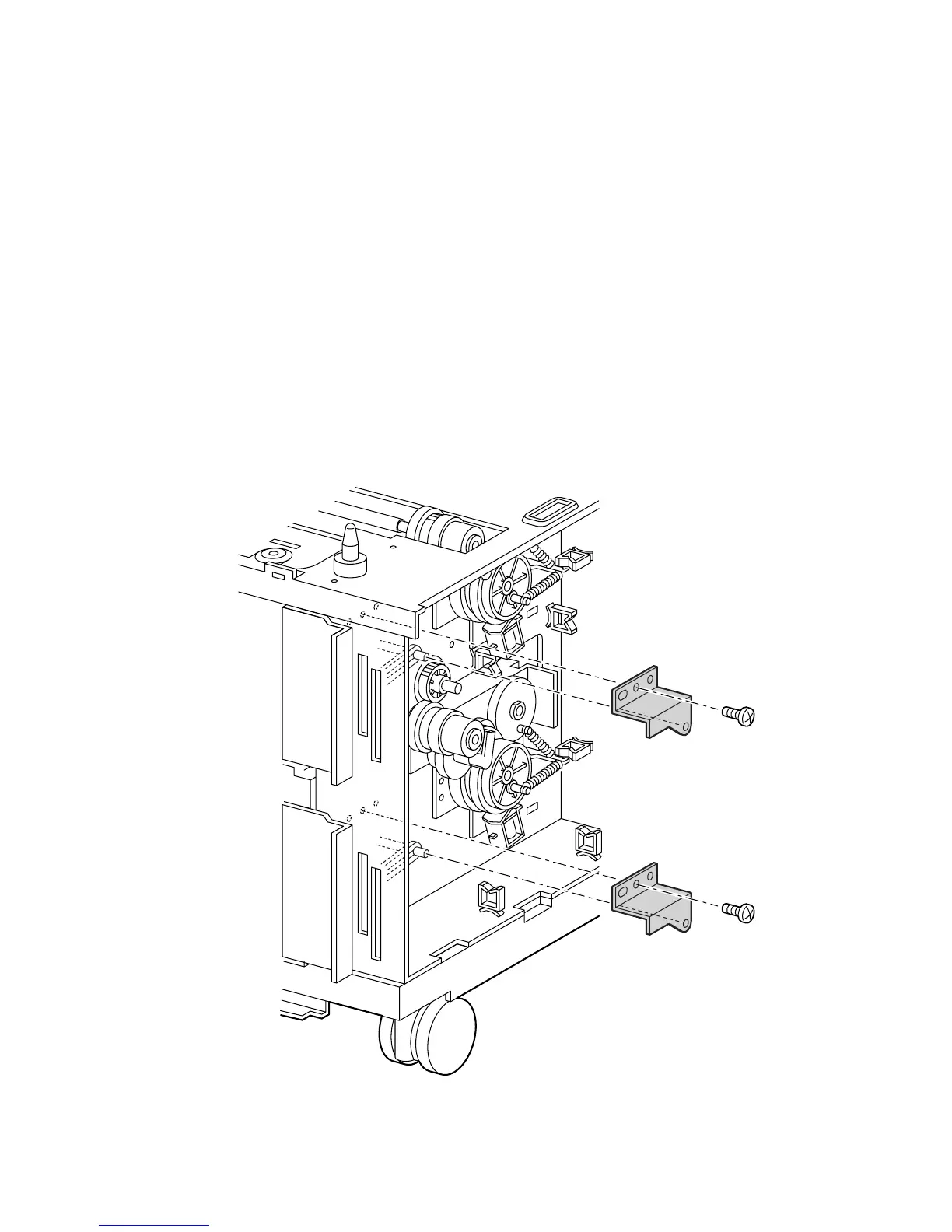

8. Remove the 1 screw securing the Low Paper Bracket to the HCF frame.
9. Remove the Bracket.
10. Remove the 5 screws securing the Right Tray Guide to the HCF frame.
6250-274
