Xerox PHASER 6250 Service Manual

Service Parts Disassembly 8-53
Tray 1 Actuator (PL 6.1.37) and Tray 1 Sensor (PL 6.1.4)

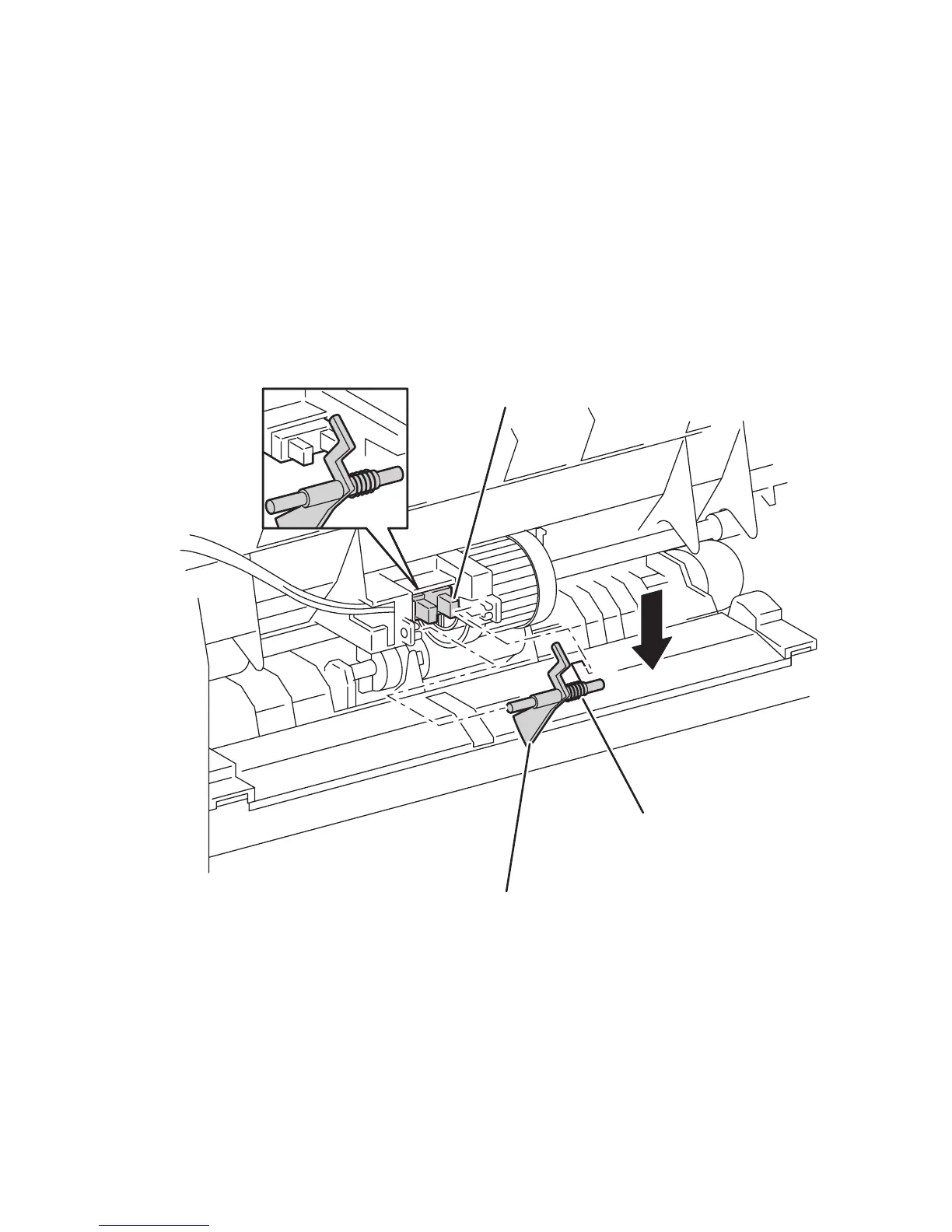

Removal of the Actuator
1. Remove the Front Left Cover (page 8-16).
2. Push down on the Tray 1 metal plate and push the actuator in.
3. Slide the actuator (item #2) to the left and remove to the right.
4. Remove the spring (item #3) from the actuator.
Caution
Be careful not to lose or damage the spring. Note spring orientation for
reassembly.
1
3
2
6250-187
