Xerox PHASER 6250 Service Manual

Service Parts Disassembly 8-45

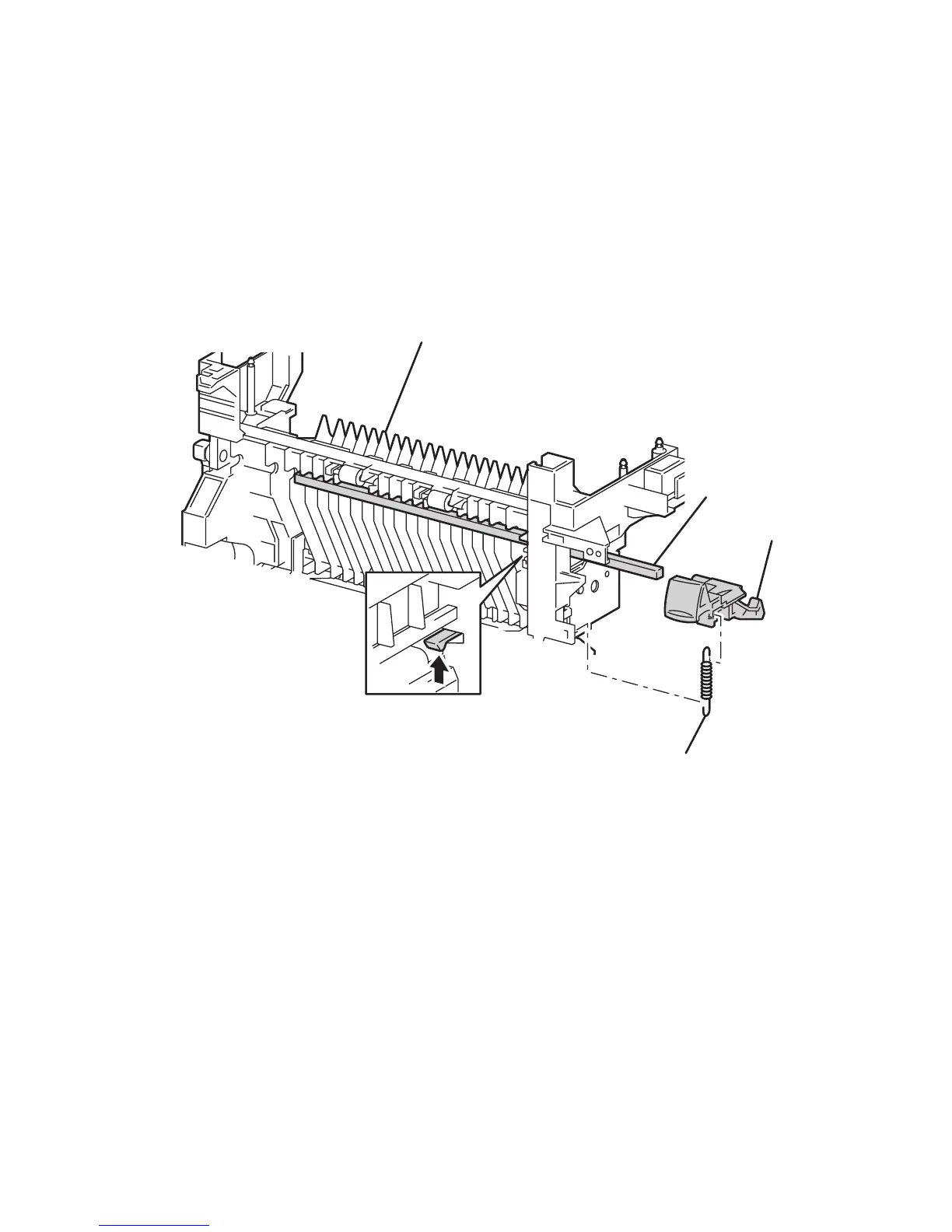

Right Latch (Door A) (PL 5.1.21)
1. Remove the Fuser Assembly (Routine Maintenance Item) (page 8-5).
2. Remove the Front Right Cover (page 8-15).
3. Open Door A.
4. Release the hook on the lower part of the spring (item 4) securing it to the Chute
Assembly In.
5. Release the tab securing Right Latch (item 3) to the Chute Assembly In.
6. Remove Right Latch from the Latch Shaft (item 2).
6250-173
1
4
3
2
