Service Parts Disassembly 8-93

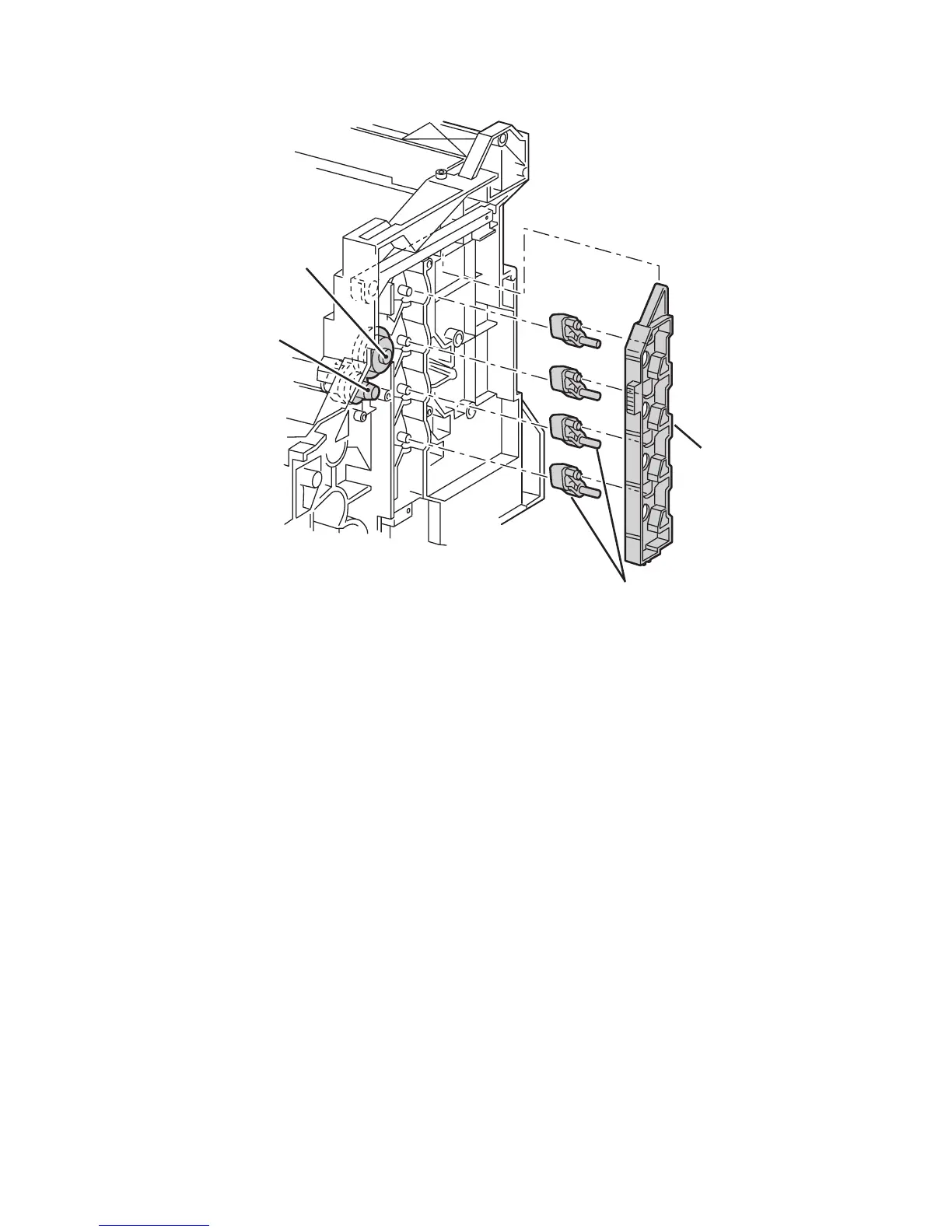

9. Carefully remove the Right Link lever (item #3) from the printer chassis together
with the springs and the drum levers (item #4).
Note
For reassembly ensure the drum levers are seated properly on the aligning
posts.
Note
When replacing the Lever Link, ensure that the spring behind the Gear Press
(item #5) is aligned as shown in the figure on the preceding page when the
Lever Link is at the bottom of its travel as shown in the same figure.
6
5
3
4
6250-240
To Next Page
