8-74 Phaser 6250 Color Laser Printer Service Manual

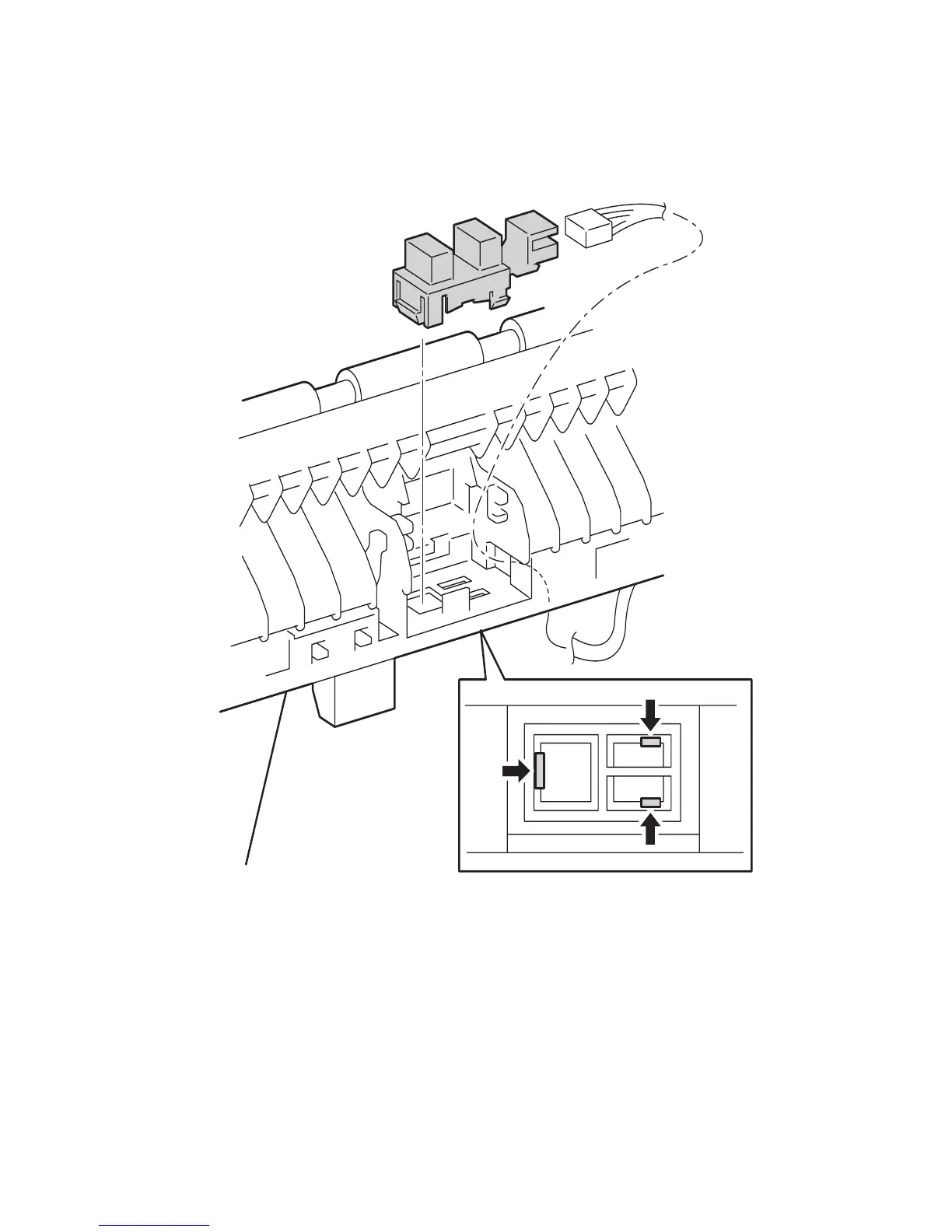

Removal of Sensor
1. Remove the Registration Actuator.
2. Disconnect P/J181.
3. Release the 3 tabs securing the Sensor to the Chute Assembly Registration and
remove the sensor.
CHUTE ASSY REGI
6250-208
