8-78 Phaser 6250 Color Laser Printer Service Manual
6. Disconnect P/J51 from the Motor Driver Board (item #3).
7. Disconnect P/J144 (yellow top) and P/J145 (gray bottom) from the EEPROM
Board (item #4).
8. Disconnect the third connector down (P/J71) from the connector block on the left
side of the printer.

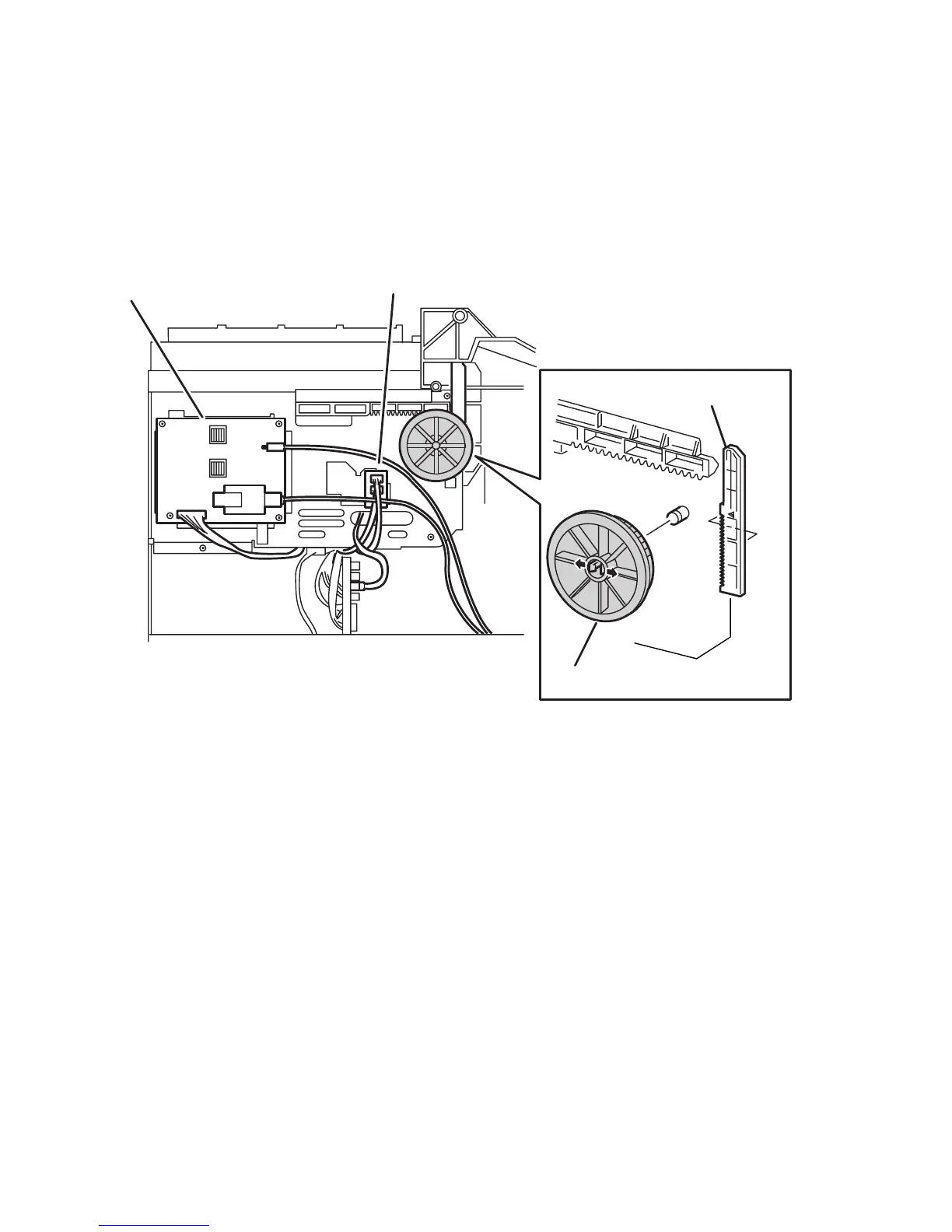

9. Disconnect P/J5020, P/J5030, and P/J5011 from the Sub-High-Voltage Power
Supply Board (item #5).
10. Release P/J5011 from the clamp.
11. Open Door C to release the pressure on the rack and release the 2 tabs securing
the Gear Slide (item #6) and remove the slide and Rack V (item #7) from the
printer.
12. Reach under the Toner Cartridge Holder Unit from the rear and disconnect
P/J3411 from the CRUM Reader Board.
6
7
4
5
6250-215
To Next Page
