8-76 Phaser 6250 Color Laser Printer Service Manual

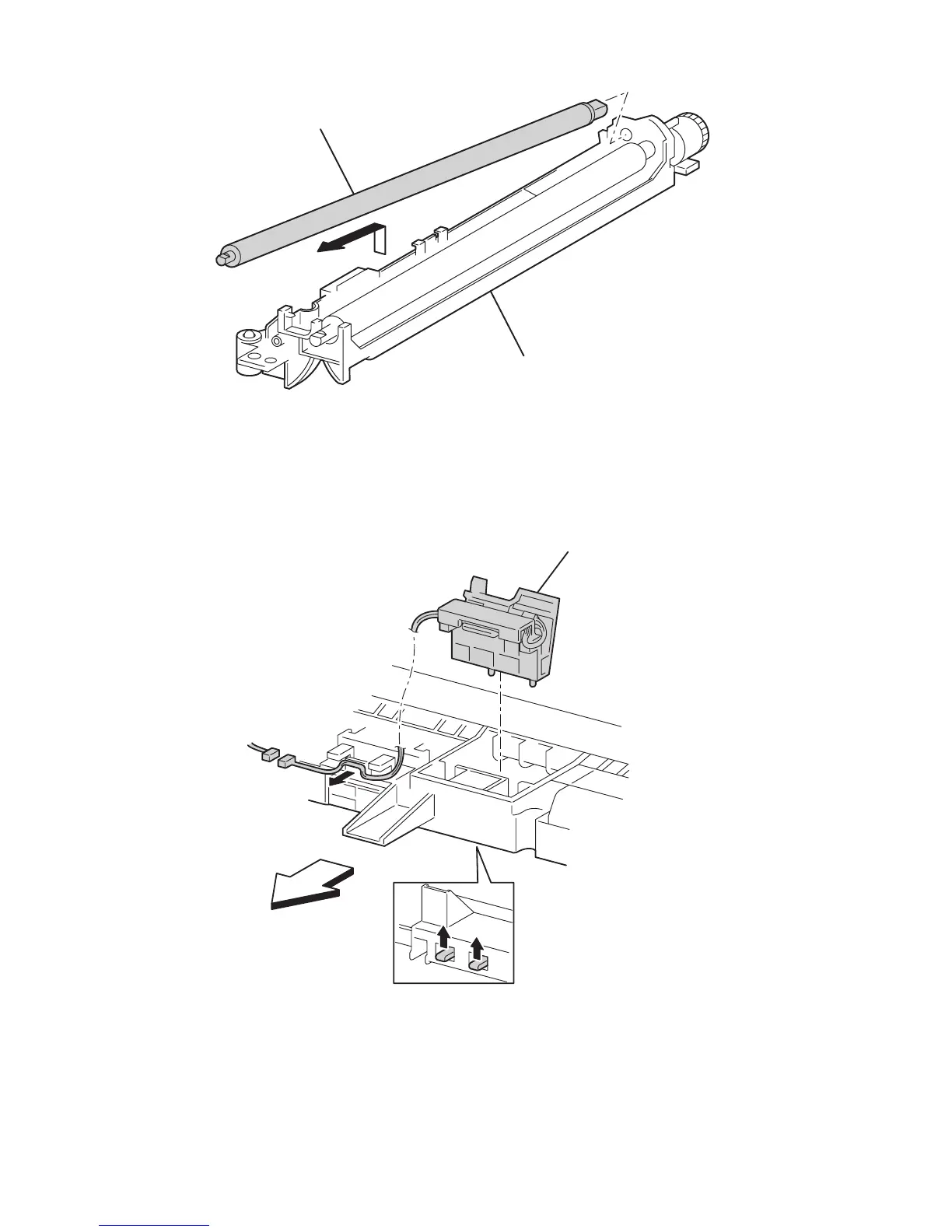

7. Raise the left end of the shaft and remove with the right white plastic bearing
attached.
8. Pull back on the tabs on the bottom of the Chute Assembly to remove the OHP
Sensor Cover (item #10).
9. Lift the retaining tab and remove the OHP Sensor from the cover.
10. Disconnect P/J321 from the sensor.
Replacement Notes:
Note
When reassembling, the white gear (item #5) goes on the metal roller, and
the black gear (item #4) goes on the rubber roller. Install the springs last.
9
8
6250-249
10
REAR
6250-250
