Service Parts Disassembly 8-31

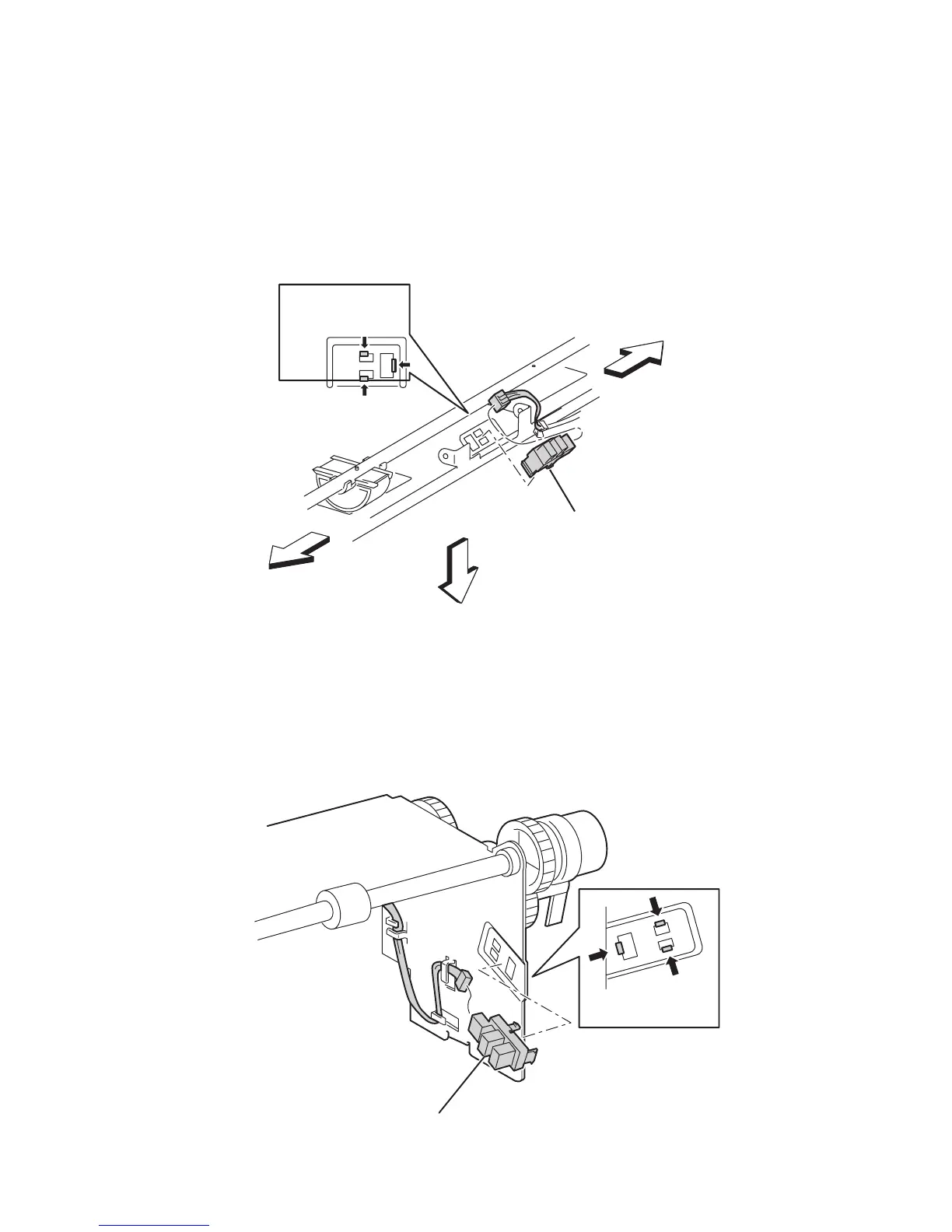

Removal - No Paper Sensor
Note
The sensors are interchangeable.
1. Remove the right Paper Pick Roller to gain access to the P/J472 (blue).
2. Disconnect P/J472 (blue) from the No Paper Sensor (item #1).
3. Lift up on the clear plastic lock to release 3 tabs securing the No Paper Sensor to
the Paper Pick Assembly and remove the No Paper Sensor.
Removal - Low Paper Sensor
1. Disconnect P/J473 (yellow) on the Low Paper Sensor.
2. Release 3 tabs securing the Low Paper Sensor to the Paper Pick Assembly and
remove the sensor.
LEFT
RIGHT
1
TOP
6250-155
1
6250-158
To Next Page
