8-90 Phaser 6250 Color Laser Printer Service Manual

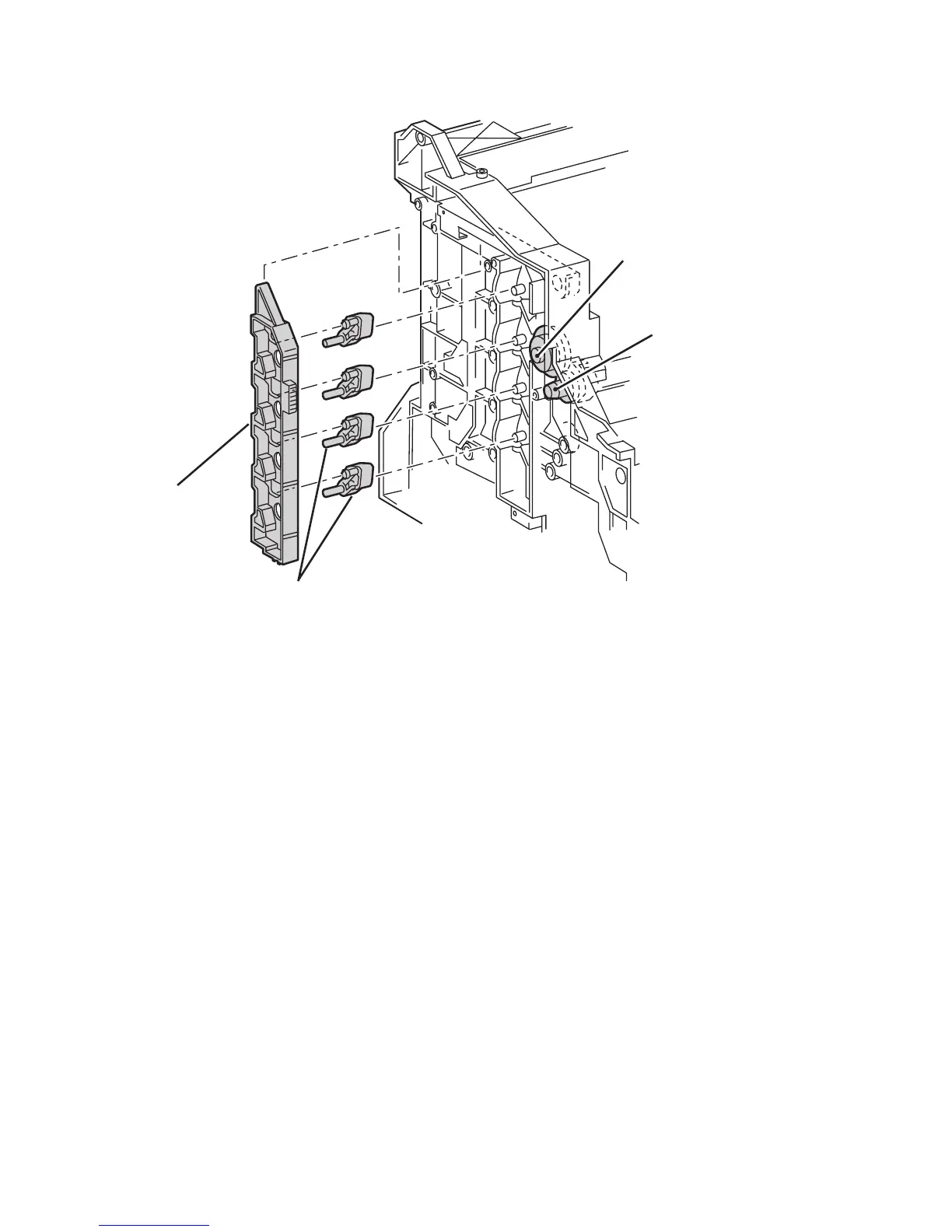

8. Carefully remove the Left Link lever (item #4) from the printer chassis together
with the springs and the drum levers (item #3).
Caution
Do not accidentally knock out the stud plungers (bias contacts).
Note
For reassembly ensure the drum levers are seated properly on the aligning
posts.
Note
When replacing the Lever Link, ensure that the spring behind the Gear Press
(item #6) is aligned as shown in the figure on the preceding page when the
Lever Link is at the bottom of its travel as shown in the same figure.
3
4
6
5
6250-239
To Next Page
