4.2 Using the Digital LED Operator
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 103
Start-Up Programming & Operation
4

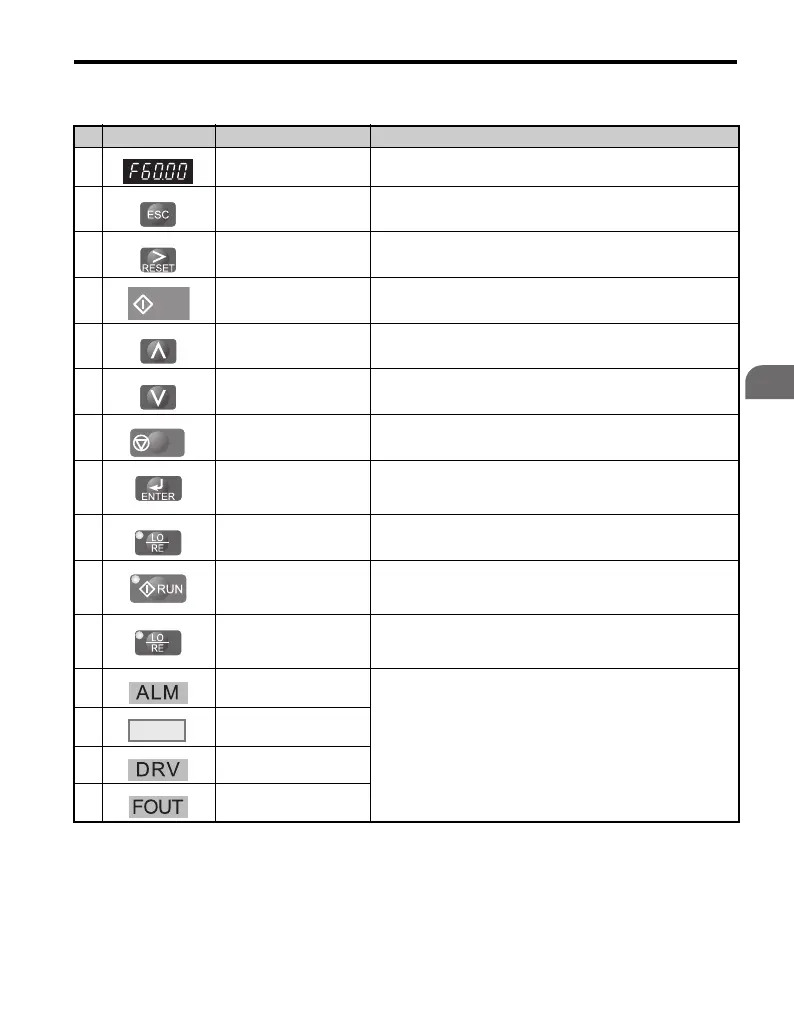

Table 4.1 Keys and Displays on the LED Operator
No. Display Name Function
1 Data Display Area Displays the frequency reference, parameter number, etc.
2 ESC Key Returns to the previous menu.
3RESET Key
Moves the cursor to the right.
Resets the drive to clear a fault situation.
4 RUN Key Starts the drive.
5 Up Arrow Key Scrolls up to select parameter numbers, setting values, etc.
6 Down Arrow Key Scrolls down to select parameter numbers, setting values, etc.
7 STOP Key Stops the drive.
8 ENTER Key
Selects all modes, parameters, settings, etc.
Selects a menu item to move from one display screen to the
next.
9 LO/RE Selection Key
Switches drive control between the operator (LOCAL) and the
control circuit terminals (REMOTE).
10 RUN Light
Lit while the drive is operating the motor. Refer to A RUN light
flashing in short intervals can have one of the following
meanings: on page 106.
11 LO/RE Light
Lit while the operator (LOCAL) is selected to run the drive.
Refer to A RUN light flashing in short intervals can have one
of the following meanings: on page 106.
12 ALM LED Light
Refer to LED Screen Displays on page 105.
13 REV LED Light
14 DRV LED Light
15 FOUT LED Light
RUN
STOP
REV

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
