4.4 Basic Parameter Adjustments
126 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
Set the drive for the type of load using parameter C6-01 (Duty Cycle). The factory
setting is Normal Duty

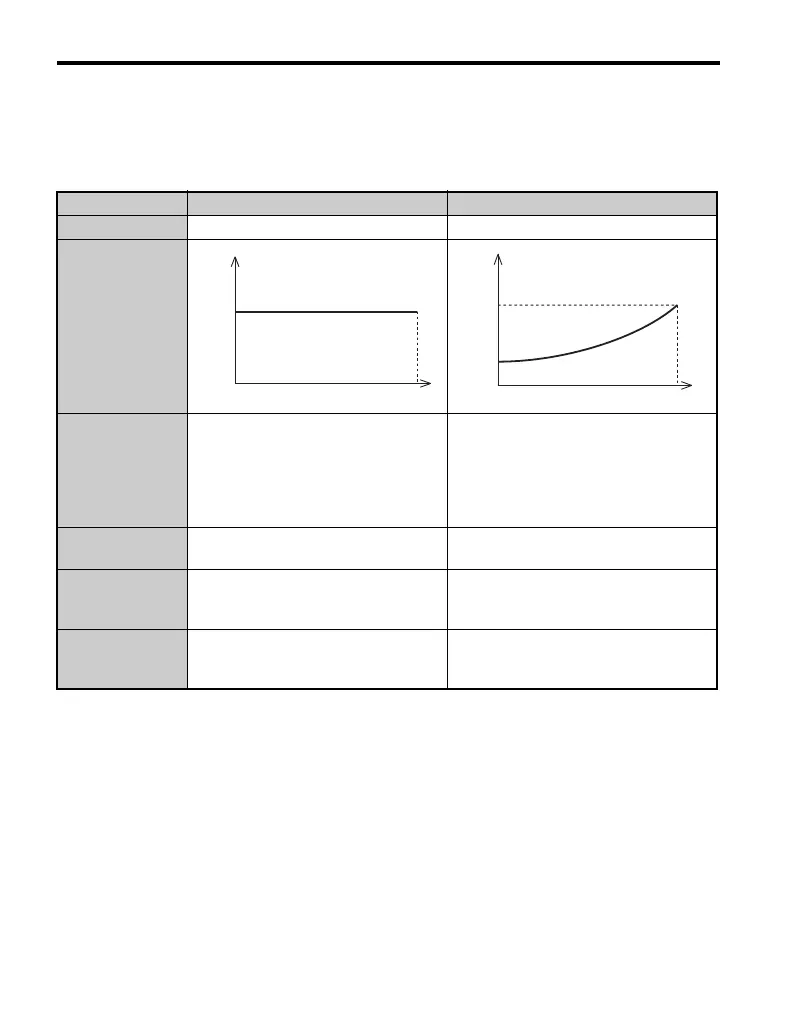

Heavy Duty (HD) vs. Normal Duty (ND) Mode Selections
Mode Heavy Duty Rating (HD) Normal Duty Rating (ND)
C6-01 01
Characteristics
Application
Use Heavy Duty Rating is designed
applications requiring a high overload
tolerance with constant load torque.
Such applications include extruders,
conveyors and cranes.
Use Normal Duty Rating for
applications in which the torque
requirements drop along with the speed.
Examples include fans or pumps where
a high overload tolerance is not
required.
Over load
capability (OL2)
150% of drive rated current for 60 s 120% of drive rated current for 60 s
L3-02 Stall
Prevention during
Acceleration
150% 120%
L3-06 Stall
Prevention during
Run
150% 120%
torque
100 %
100 %
0 motor speed
motor speed
0
torque
100%
100%

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
