YASKAWA V1000 Series Installation & Start-Up Manual

4.5 Test Run
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 165
Start-Up Programming & Operation
4

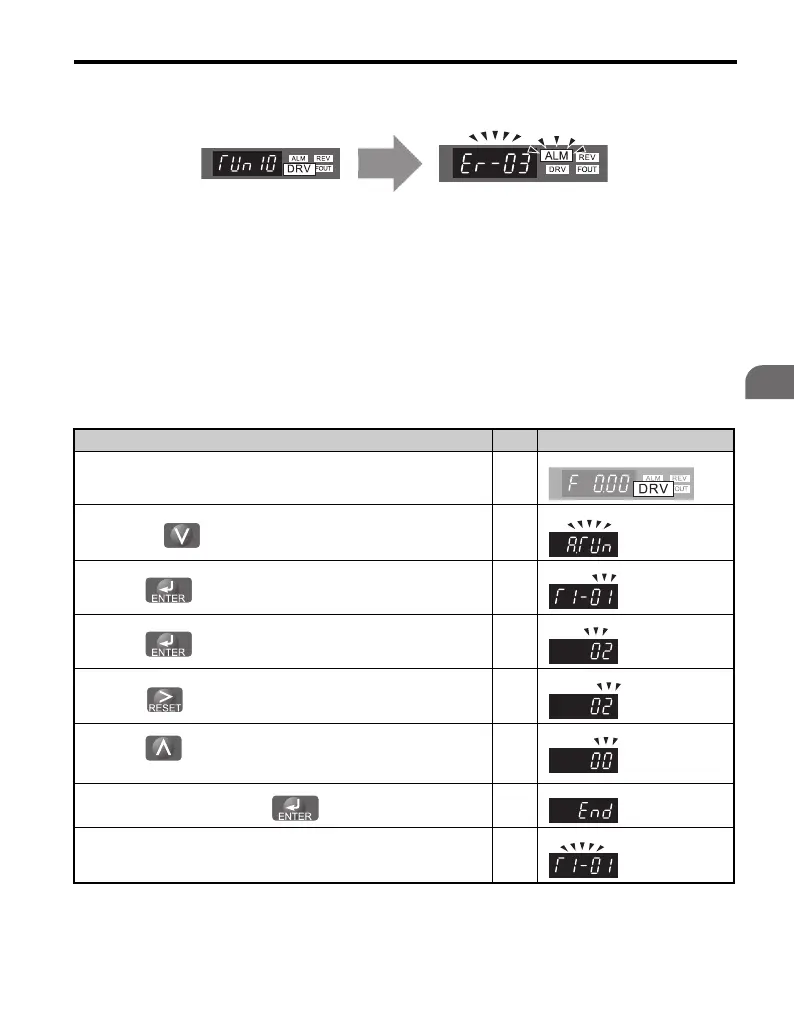

Figure 4.28
Figure 4.28 Auto-Tuning Interruption Display
■
Performing Auto-Tuning
The following example illustrates how to perform Rotational Auto-Tuning.
Note: The following example is shown with the drive in Open Loop Vector Control
(A1-02 = 2).
Selecting the Type of Auto-Tuning
A – Normal Auto-Tuning Display B – Auto-Tuning Interrupted
Step Display/Result
1. Turn on the power to the drive. The initial display appears. ⇒
2.
Press the key until the Auto-Tuning screen appears.
⇒
3.
Press to begin setting parameters.
⇒
4.
Press to display the value for T1-01.
⇒
5.
Press to select the digit to edit.
⇒
6.
Press and set the drive to perform Rotational Auto-Tuning
(00).
⇒
7.
Save the setting by pressing .
⇒
8. The display automatically returns to the screen shown in Step 3. ⇒
AB

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
