4.5 Test Run
166 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
Enter Data from the Motor Nameplate
After selecting the type of Auto-Tuning, enter the required data from the motor
nameplate.
Note: These instructions continue from Step 8 in Selecting the Type of Auto-Tuning.

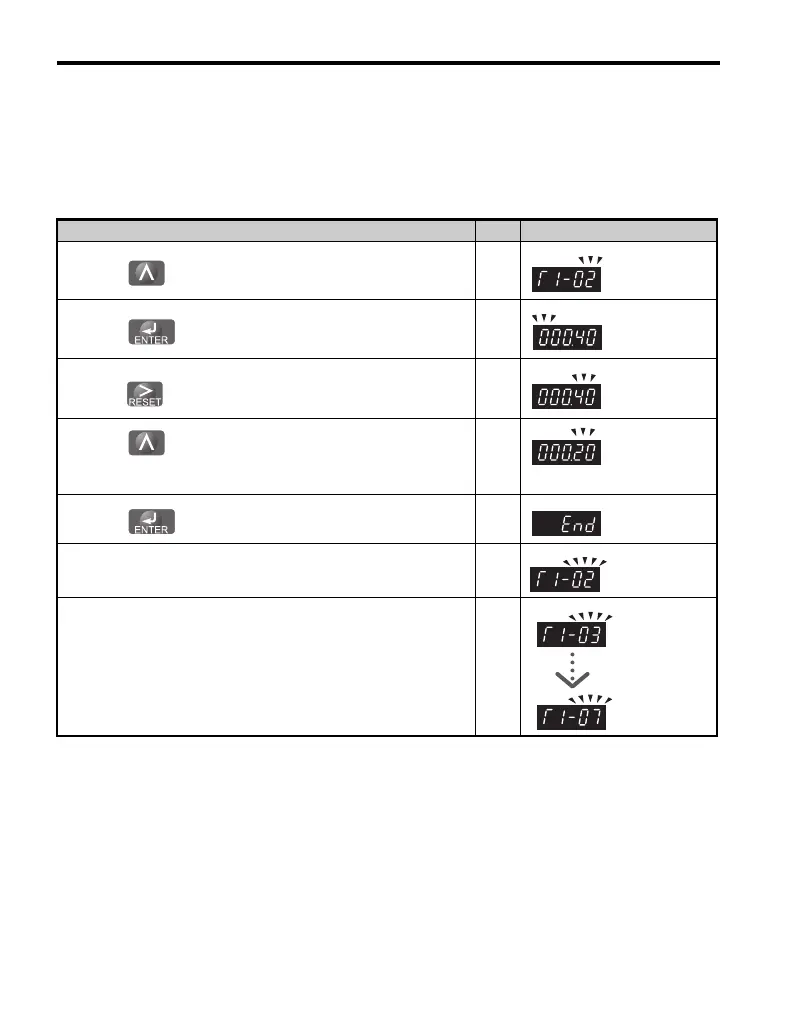

Step Display/Result
1.
Press to access the motor output power parameter T1-02.
⇒
2.
Press to view the default setting.
⇒
3.
Press to select the digit to edit.
⇒
4.
Press and enter “0.2.”
Enter this value based on the motor nameplate data.
Example: 0.4 kW → 0.2 kW
⇒
5.
Press to save the setting.
⇒
6. The display automatically returns to the screen shown in Step 1. ⇒
7. Repeat Steps 1 through 5 to set the following parameters:T1-03,
Motor Rated Voltage; T1-04, Motor Rated Current; T1-05, Motor
Base Frequency; T1-06, Motor Poles; T1-07, Motor Base Frequency
⇒

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
