YASKAWA V1000 Series Installation & Start-Up Manual

4.5 Test Run
176 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
Figure 4. 30

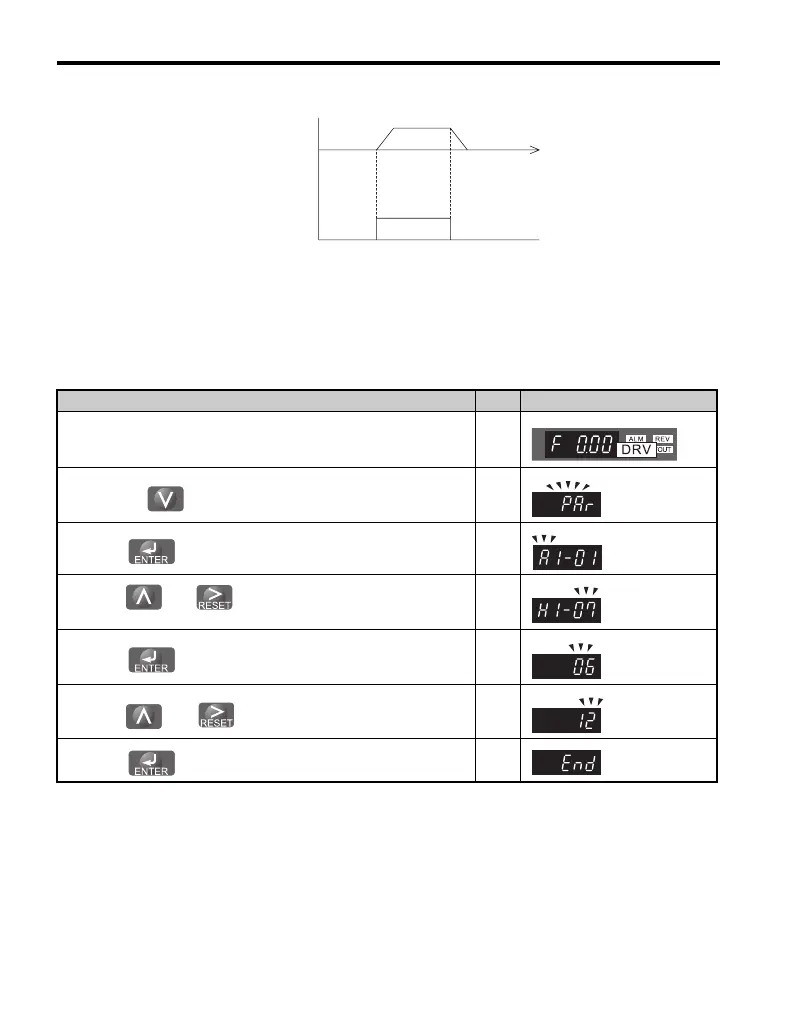

Figure 4.30 Jog Operation Pattern
■
Jog Operation Procedures
Setting FJOG to digital input terminal S7 (such as, setting H1-07 to 12).
Step Display/Result
1. Turn the power on to the drive. ⇒
2.
Press the key until the Parameter Setting menu appears.
⇒
3.
Press to enter the Parameter Setting menu.
⇒
4.
Press and until H1-07 appears.
Note: Select a parameter between H1-01and H1-07.
⇒
5.
Press to begin editing H1-07.
⇒
6.
Press and until “12” appears on the screen.
⇒
7.
Press to save the setting.
⇒
6.0 Hz
ON
Output
Frequency
Jog Reference
(FJ0G)

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
