YASKAWA V1000 Series Installation & Start-Up Manual

4.5 Test Run
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 175
Start-Up Programming & Operation
4
Set one or two digital input terminals between S1 and S7 for FJOG and RJOG
(H1-01 to H1-07 = “12” and “13”).
No run command is required for JOG operation.
The JOG operation has the highest priority (i.e., other frequency references are
disregarded).
■ Jog Operation Parameters
■ Selections for Digital Input Terminals S1 to S7 (H1-01 to H1-07)

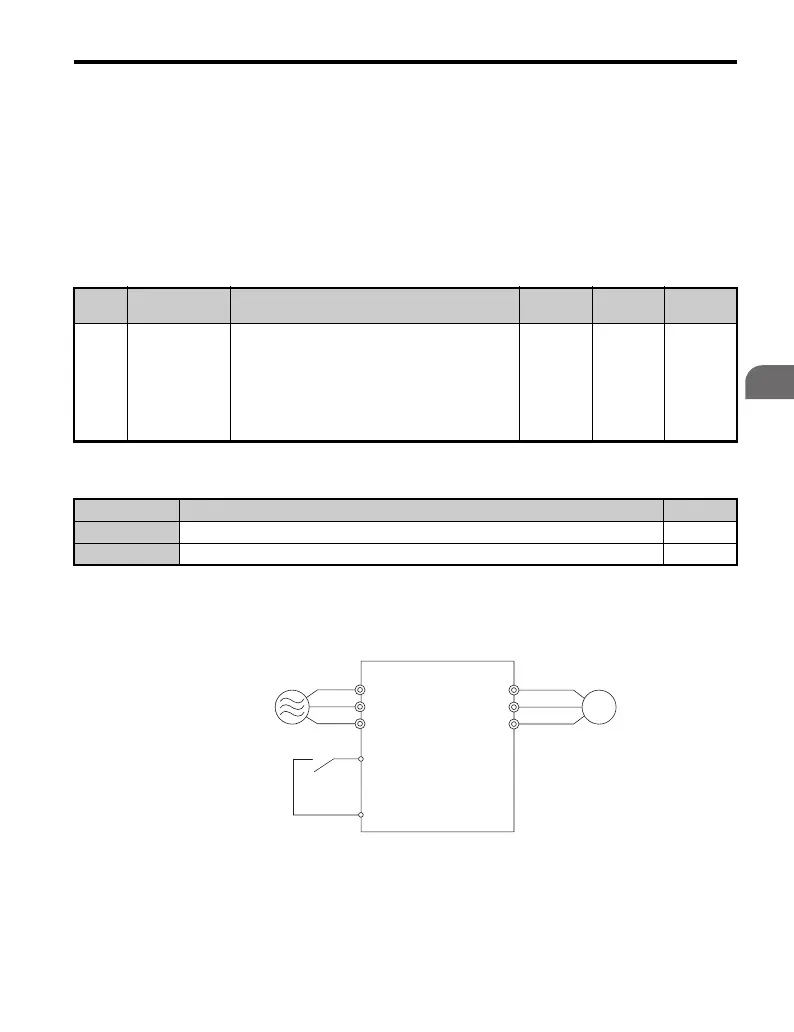

■ Connection Example for the Jog Function
In this example, H1-07 = 12 and d1-17 = 6.0 Hz.
Figure 4.29
Figure 4.29 Jog Command from External Terminals
No. Name Description
Setting
Range
Default
Setting
Page
d1-17
Jog Frequency
Reference
Frequency reference when: “Jog Frequency
Reference” is selected via multi-function input
terminals. “Jog Frequency Reference” has priority
over “Multi-Step Speed Reference 1 to 16."
Parameter d1-17 is also the reference for the JOG
key on the digital operator, and the multi-function
inputs “Forward Jog” and “Reverse Jog.”
0.00 to
400.00
6.00 Hz 351
Setting Name Page
12 FJOG Command (ON: rotates forward at the Jog frequency set to d1-17) —
13 RJOG Command (ON: rotates in reverse at the Jog frequency set to d1-17) —
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
M
Three-Phase 200 Vac
(400 Vac)
S7 (FJ0G)
SC
Drive

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
