4.5 Test Run
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 179
Start-Up Programming & Operation
4

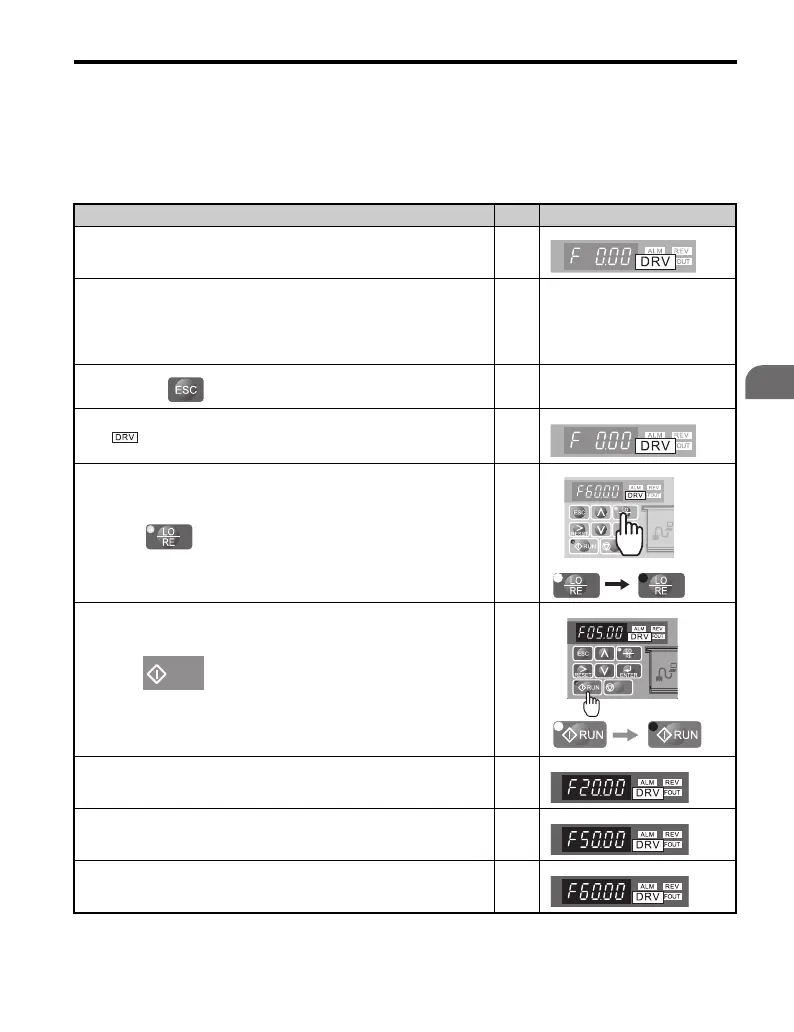

■ Setting Procedure
The following example uses the LED operator as frequency reference and run
command source (LOCAL mode).
Step Display/Result
1. Turn on the power to the drive. ⇒
2. Set the frequencies listed below to the specified parameters:
1. d1-01 = 5 Hz: Step 1 <1>
2. d1-02 = 20 Hz: Step 2 <2>
3. d1-03 = 50 Hz: Step 3
4. d1-04 = 60 Hz: Step 4
3.
Press the key until the Top Screen appears.
4.
turns on.
⇒
5.
Press to select LOCAL. The LO/RE light will turn on.
⇒
6.
Press to run the motor at 5 Hz. The RUN light will turn
on.
⇒
7. With SW1closed, the drive runs the motor at Multi-Step Speed 2
(20 Hz).
⇒
8. With SW1 open and SW2 closed, the drive runs the motor at
Multi-Step 3 (50 Hz).
⇒
9. With both SW1 and SW2 closed, the drive runs the motor at
Multi-Step 4 (60 Hz).
⇒
STOP
RUN
STOP
