6.4 Drive Cooling Fans
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 279
Periodic Inspection & Maintenance
6
■ Removing the Cooling Fan
1. Depress the right and left sides of the fan cover tabs and pull upward.
Remove the fan cover from the top of the drive. The figure illustrates a
drive with a single cooling fan.

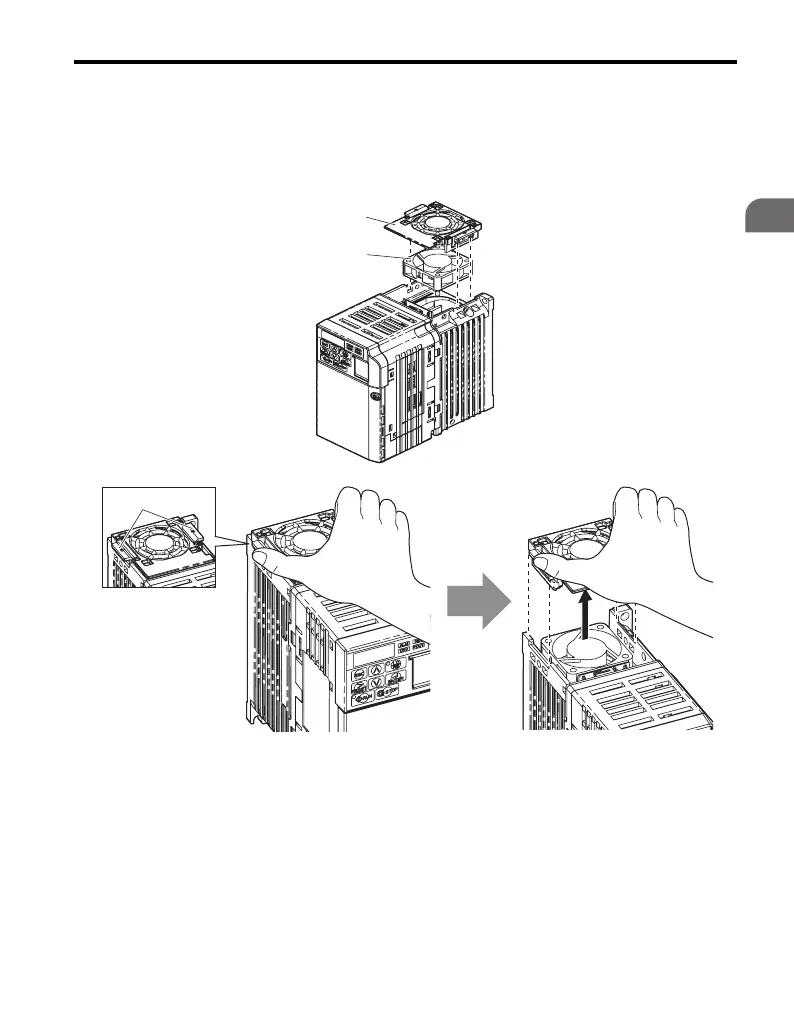

Figure 6.1
Figure 6.1 Remove the Cooling Fan Cover
A – Fan cover
B – Cooling fan
C–Tab
A
B
C
