YASKAWA V1000 Series

6.4 Drive Cooling Fans
280 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
■ Installing the Cooling Fan
1. Install the replacement cooling fan into the drive, ensuring the alignment
pins line up, as shown in the figure below:

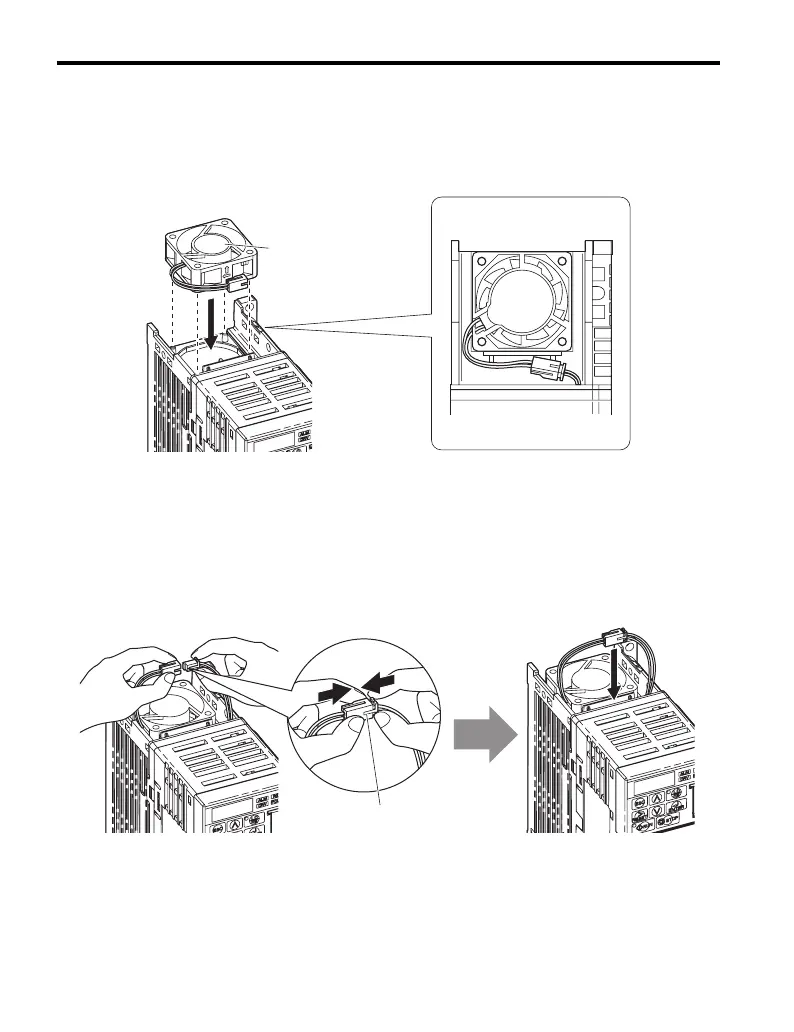

Figure 6. 2
Figure 6.2 Cooling Fan Orientation
2. Ensure the connectors are properly connected and place the cable back
into the recess of the drive.
Figure 6. 3
Figure 6.3 Connectors
A – Label facing up
B–Back
C – Front
A – Push the connectors together so no space remains between them.
A
B
C
A
