1.4 Component Names
28 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
Figure 1. 3

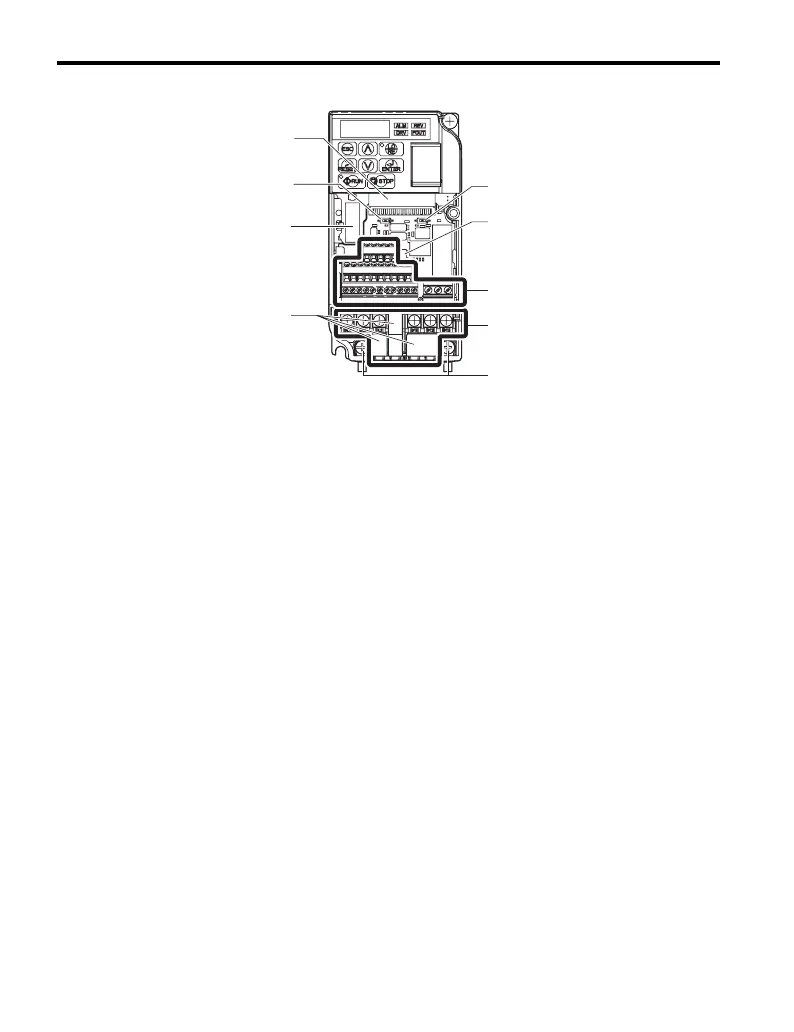

Figure 1.3 Front View of IP20/Open-Chassis Type Components
Three-Phase 200 Vac Model CIMR-V2A0006A
A – DIP switch S1
Refer to Terminal A2 Switch on
page 88
F – Terminal cover
B – DIP switch S3
Refer to Sinking/Sourcing
Mode Switch on page 84
G – (unused)
C – Control circuit terminal
Refer to Control Circuit Wiring
on page 75
H – Option card connector
Refer to Connecting an Option
Card on page 309
D – Main circuit terminal
Refer to Wiring the Main
Circuit Terminal on page 73
I – DIP switch S2
Refer to MEMOBUS/Modbus
Termination on page 90
E – Ground terminal J – Terminal board connector
J
I
H
F
A
B
C
D
E
