6.5 Drive Replacement
286 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)

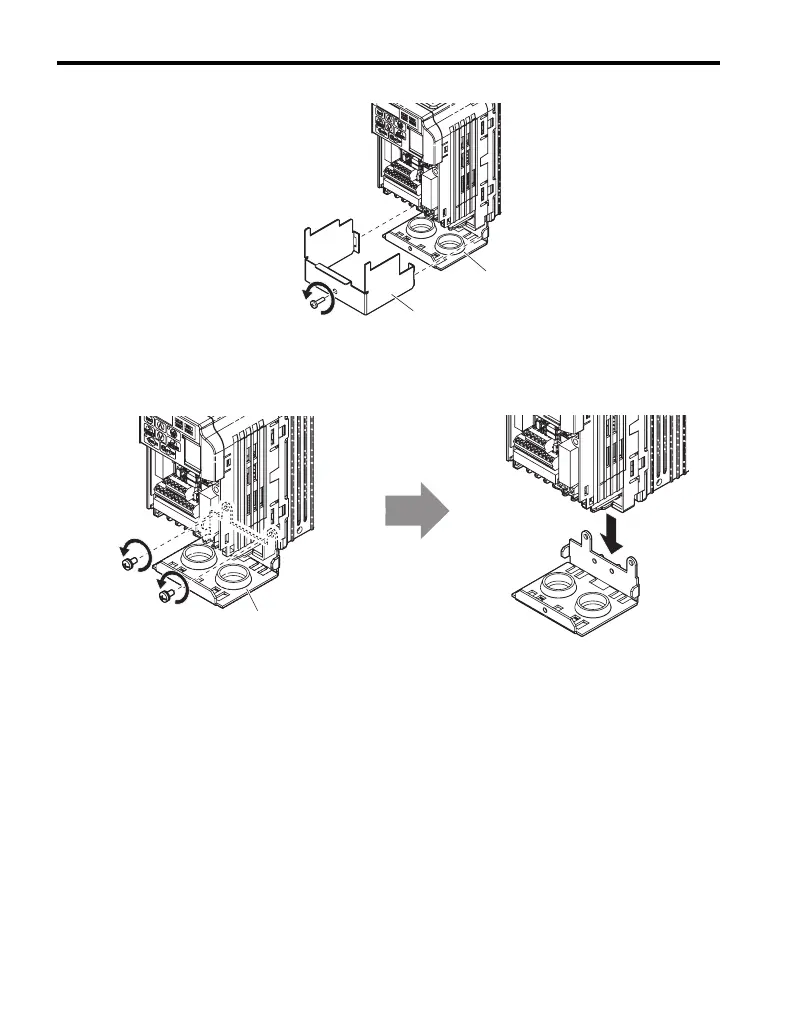

Figure 6.11
Figure 6.11 Remove the Terminal Cover on a NEMA Type 1 Drive
6. Loosen the two screws attaching the conduit bracket (Figure 6.12, A) to
remove the conduit bracket.
Figure 6. 12
Figure 6.12 Remove the Conduit Bracket on a NEMA Type 1 Drive
7. Remove the mounting screws from the heatsink and reinstall the drive.
Once the drive is replaced, follow the procedure in reverse order to
reinstall the cover and terminal board.
A
B
A

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
