YASKAWA V1000 Series

7.6 Connecting an Option Card
312 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
6. Reattach the option card cover.
Figure 7. 18

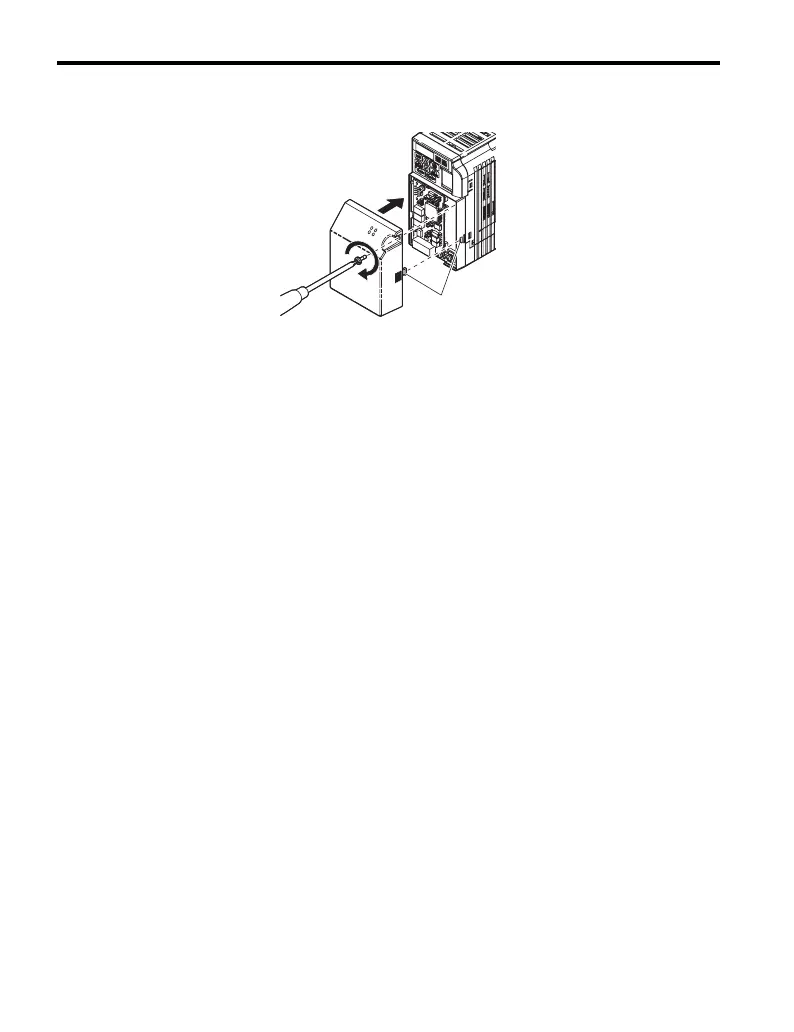

Figure 7.18 Reattach Cover
A – Align the tab with the mounting hole.
A
