A.5 Drive Derating Data
330 YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07)
Figure A.3 is provided as a quick reference to aid in derating the drive above
specified altitude.
Note: This derate applies only to the inverter. However, if the inverter is placed in a
pressurized cabinet so that the internal pressure is maintained at the value of
atmospheric pressure at 3300ft. then there is no need for derate. Example: Heat sink
is exposed to the outside and is not under positive pressure in an enclosed cabinet
with forced air cooling or an air-conditioning system. In such a case, derating is
required.

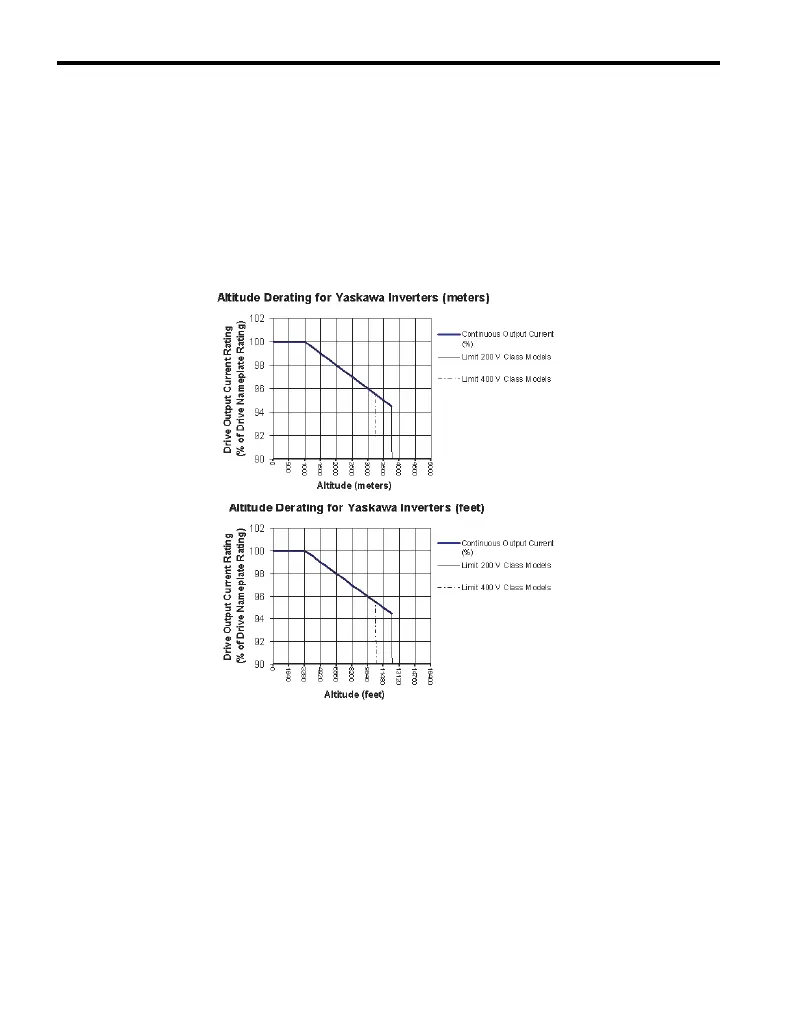

Figure A.3
Figure A.3 Altitude Derating for Yaskawa Drives
■
Motor Derating
Consult the motor manufacturer for the applicable altitude de-rating factor before
applying the motor. As a general guideline, consult the NEMA standard MG 1-
14.04 (Operation of AC and DC Fractional- and Integral-HP Motors and
Generators at Altitudes Above 3,300 feet (1000 meters). However, the motor
manufacturer's specific de-rating data is always preferable.

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
