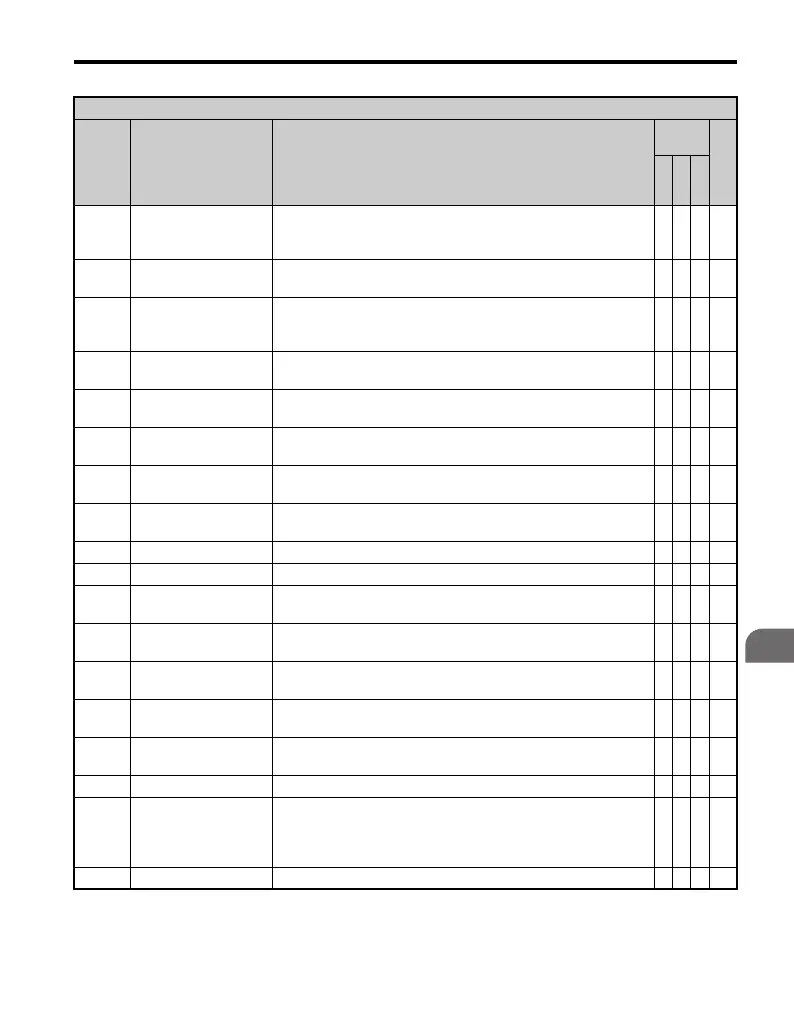

B.2 Parameter Table
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 375
Parameter List
B
12 Timer Output
Output for independent timer, controlled by b4-01 and b4-02.
Used in conjunction with the digital input (H1- = 18 “timer
function”).
OOO —
13 Fref/Fout Agree 2
Closed: When drive output frequency equals the frequency
reference +/- L4-04.
OOO —
14 Fref/Fset Agree 2
Closed: When the drive output frequency and the frequency
reference are both equal to the value in L4-03 (plus or minus L4-
04).
OOO —
15 Frequency Detection 3
Closed: When the drive output frequency is less than or equal to
the value in L4-03 with the hysteresis determined by L4-04.
OOO —
16 Frequency Detection 4
Closed: When the output frequency is greater than or equal to the
value in L4-03 with the hysteresis determined by L4-04.
OOO —
17
Torque Detection 1
(N.C.)
Open: When the output current/torque exceeds the value set in
parameter L6-02 for more time than is set in parameter L6-03.
OOO —
18
Torque Detection 2
(N.O.)
Closed: When the output current/torque exceeds the value set in
parameter L6-05 for more time than is set in parameter L6-06.
OOO —
19
Torque Detection 2
(N.C.)
Open: Output current/torque exceeds the value set in parameter
L6-05 for more time than is set in parameter L6-06.
OOO —
1A Reverse Direction Closed: Drive is running in the reverse direction. O O O —
1B Baseblock 2 Open: There is no voltage output. O O O —
1C Motor 2 Selection
Closed: Motor 2 is selected via one of the multi-function inputs
(H1- = 16)
OOO —
1E Restart Enabled
Closed: When the drive is performing an automatic restart.
Configure automatic restart with parameters L5-01 through L5-05.
OOO —
1F
Overload OL1 (OL1
Alarm)
Closed: OL1 is at 90% of its trip point or greater. O O O —
20 OH Pre alarm
Closed: Heatsink temperature exceeds the value set to parameter
L8-02.
OOO —
22
Mechanical Weakening
(N.O.)
Closed: Mechanical Weakening detected. O O O —
30 During Torque Limit Closed: When the torque limit has been reached. − O − —
37
During Frequency
Output
Closed: Run command is present (except during baseblock and
during DC Injection Braking).
Open: Run command is been removed, or baseblock, DC Injection
Braking, or Initial Excitation is being performed.
OOO —
38 Drive Enable Closed: Multi-function input closes (H1- = 6A) O O O —
H2 Multi-Function Digital Output Settings
H2-
Setting
Function Description
Control
Mode
Pg.
V/
f
O
L
V
P
M
